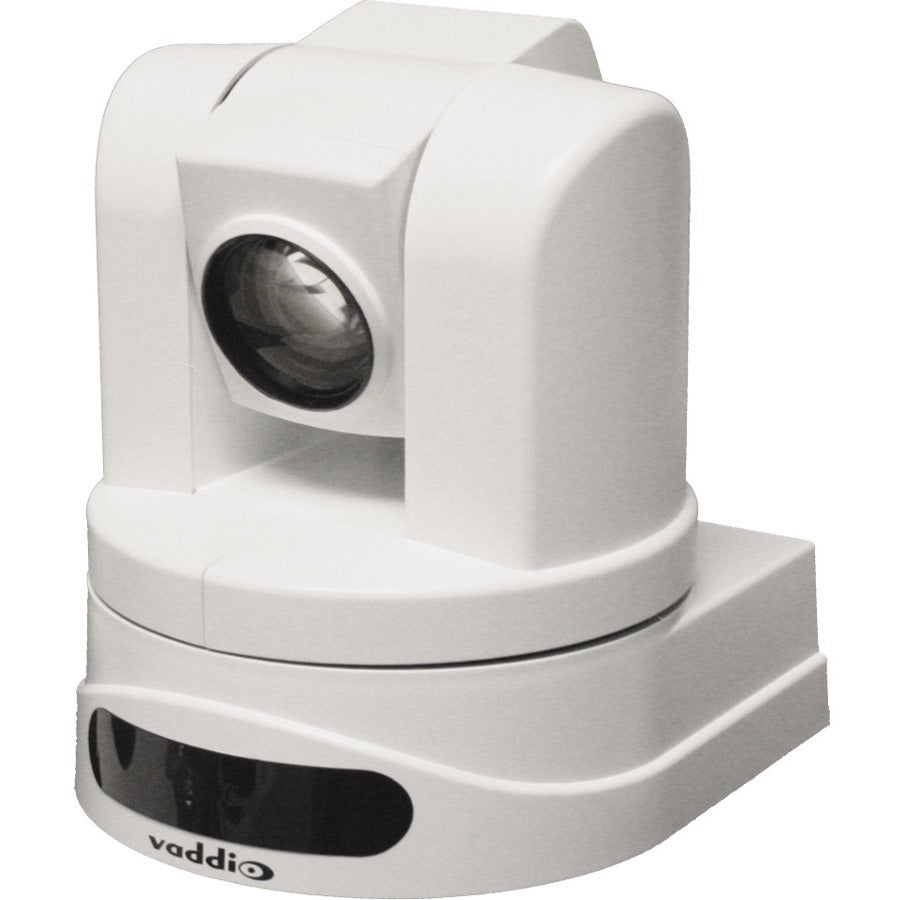

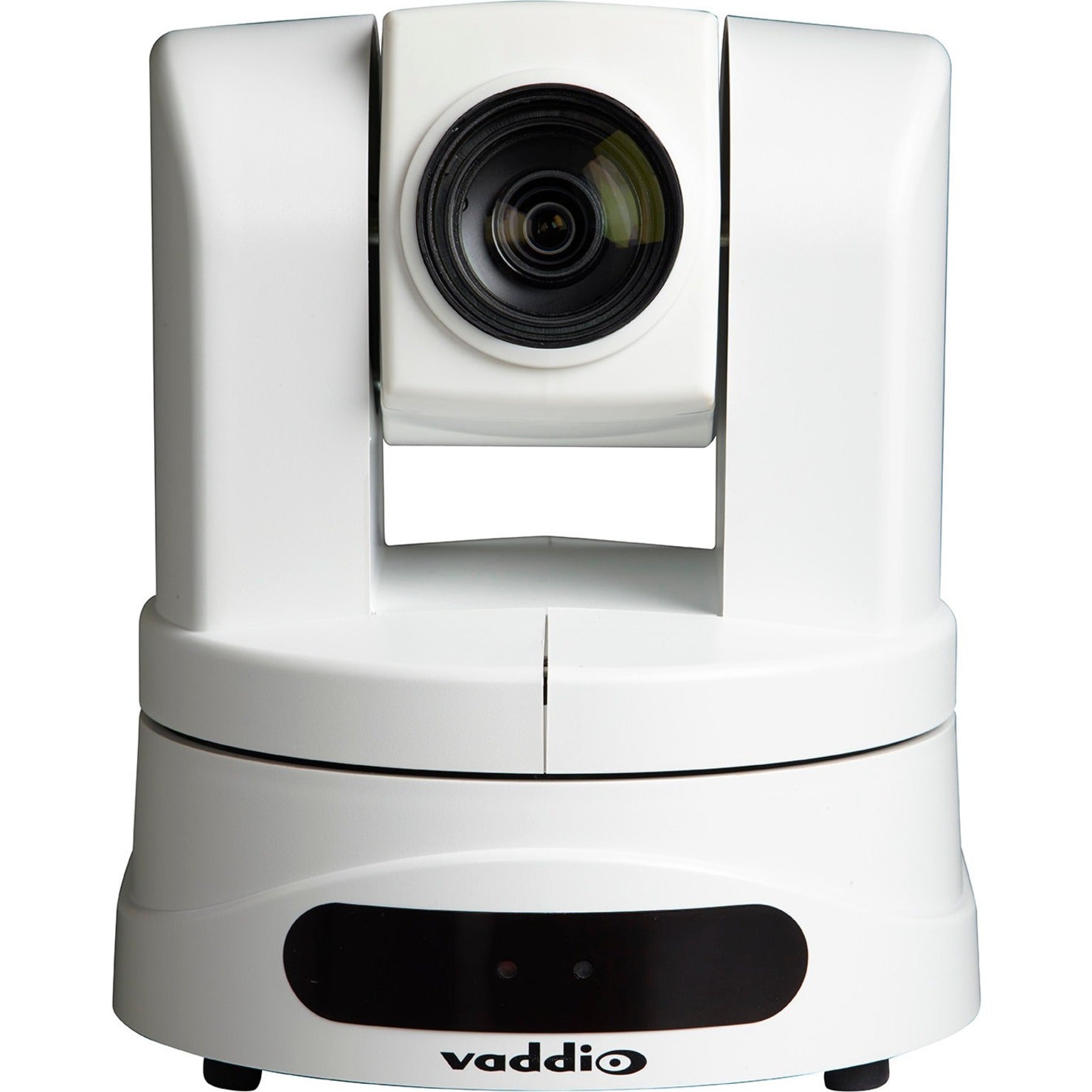

The ClearVIEW HD-20SE HD PTZ Camera combines the best features and functions of the HD-18 HD-19 and HD-20 PTZ cameras. This new PTZ camera features an advanced Image Signal Processor (ISP) and encompasses the innovation of the HD-18 the low light capability of the HD-19 and the Full HD performance of the HD-20 ClearVIEW Camera line.

This camera features native 1080p/60 and uses the latest 1/2.8-type Exmor high speed low noise CMOS image sensor technology with 2.38 total pixels. The ISP provides fast razor-sharp auto-focus routines incredible detail realistic textures and vivid colors. In addition the HD-20SE has an impressive low-light performance of 0.3 Lux (color) and 0.03 Lux (B/W)

As the name suggests the HD-20SE features a 20X optical zoom multi-element glass lens and a 63-degree wide to 3.47-degree tele horizontal field of view. Outputs include simultaneous HDMI YPbPr and HSDS and support both drop framed and non-drop framed HD video resolutions.

The Quick-Connect™ CCU enables the adjustment of AWB red and blue gain brightness OPWB gamma chroma detail iris and gain controls with a simple press of a buttom on the Quick-Connect CCU. These controls deliver a more accurate representation of the image that is being captured and the ability to color match and shade multiple cameras. User-defined adjustments can be stored on three Scene-Store buttons.

The Quick-Connect CCU delivers high-quality HD Video power and control over three Cat. 5 cables up to 500 feet without loss of video quality or latency. Outputs include analog component YPbPr HDMI and HD-SDI for extreme flexibility in system design and integration. All outputs are live simultaneously.

More from the Manufacturer

• ClearVIEW HD-20SE Surveillance Camera
• 1 x Vaddio IR Remote Commander
• 1 x EZCamera Control Adapter (RJ-45F to DE-9F)
• 1 x 12 VDC 3.0 Amp Switching Power Supply
• 1 x AC Power Cord Set
• 1 x Quick-Start Guide (1-pager)
• Quick-Connect Universal CCU Interface
• Wall Mount & Mounting Hardware
