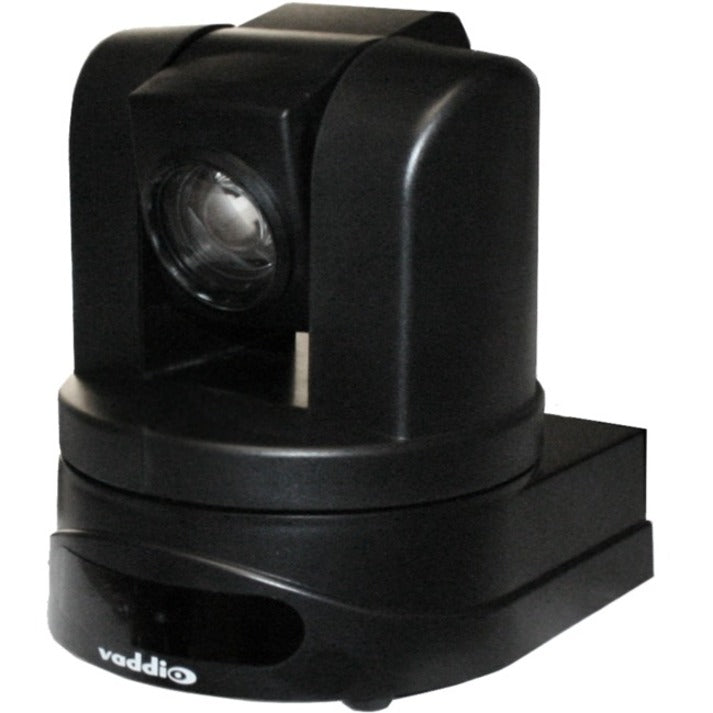

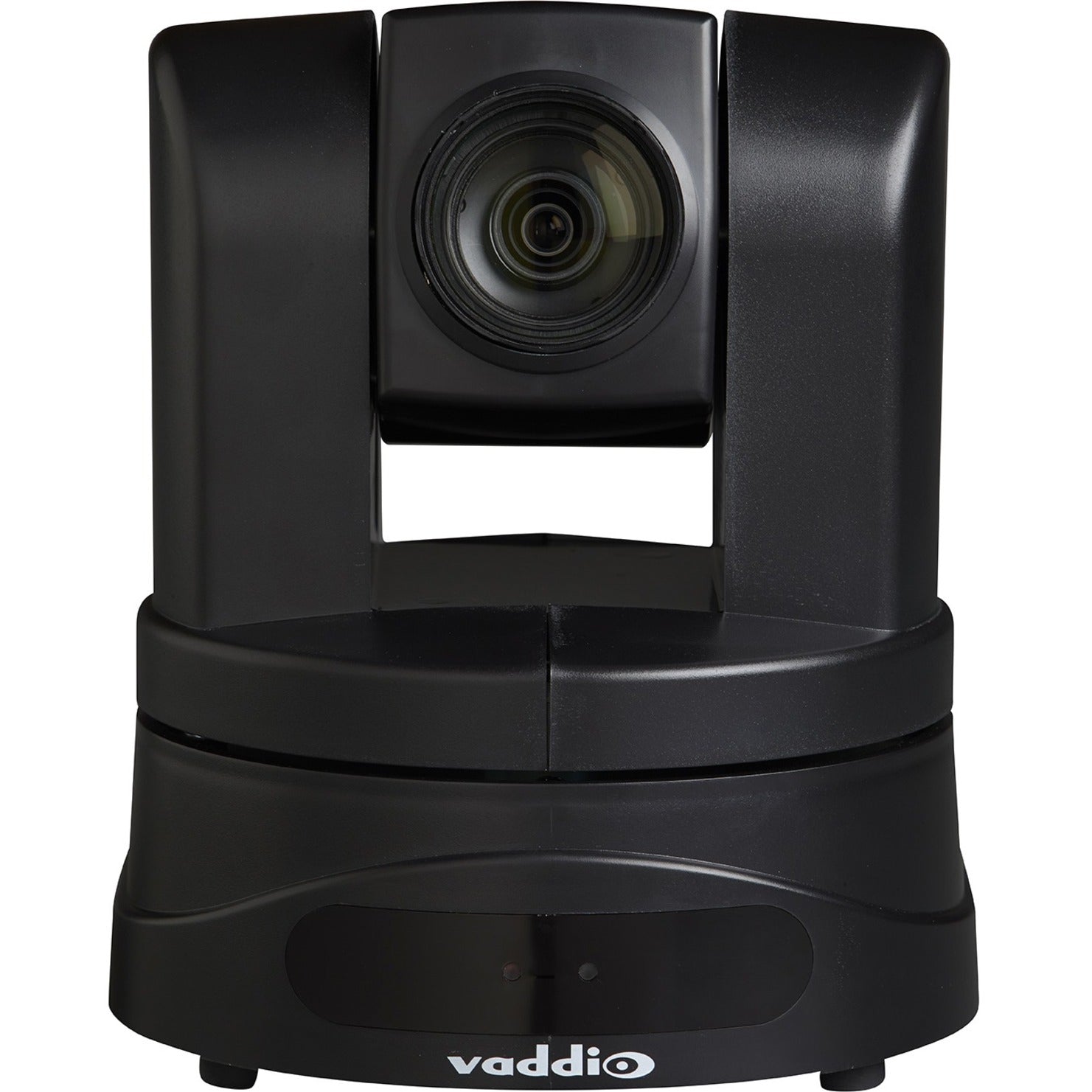

Vaddio ClearVIEW HD-20SE 2.1 Megapixel HD Surveillance Camera - Monochrome Color - 1 Pack

Vaddio ClearVIEW HD-20SE 2.1 Megapixel HD Surveillance Camera - Monochrome Color - 1 Pack

SKU: 1029697864      MFR: Legrand Group

Product Description

Vaddio ClearVIEW HD-20SE 2.1 Megapixel HD Surveillance Camera - Monochrome Color - 1 Pack - H.264 - 1920 x 1080 - 4.44 mm- 89 mm Zoom Lens - 20x Optical - Exmor CMOS - HDMI - Wall Mount

Manufacturer : Legrand Group

Manufacturer Part No : 999-6989-000

Features

  • HDMI YPbPr USB 2.0 or H.264 Streaming Outputs
  • Power/Video/Control on two Cat-5's up to 150' (45.72m) for ZoomSHOT/WideSHOT series cameras
  • Power/Video/Control on two Cat-5's up to 100' (30.5m) for RoboSHOT PowerVIEW and ClearVIEW series cameras
  • Embedded Web Server for browser-based robotic camera control and CCU image and color control

Product Details

Minimum Focal Length4.44 mm
Image Sensor TypeExmor CMOS
HDMIYes
Network (RJ-45)Yes
Product FamilyClearVIEW
Color SupportedMonochrome
Connectivity TechnologyWired
Optical Zoom20x
Brand NameVaddio
Product TypeSurveillance Camera
Maximum Video Resolution1920 x 1080
Maximum Focal Length89 mm
Effective Camera Resolution2.1 Megapixel
HD RecordingYes
Height7.8"
Width6.7"
Depth7.1"
Lens TypeZoom
ManufacturerLegrand Group
Product ModelHD-20SE
Product NameClearVIEW HD-20SE Surveillance Camera
Mount TypeWall Mount
Product LineClearVIEW
Video FormatsH.264
Manufacturer Part Number999-6989-000
Manufacturer Website Addresshttp://www.legrand.us
Marketing Information

The ClearVIEW HD-20SE HD PTZ Camera combines the best features and functions of the HD-18 HD-19 and HD-20 PTZ cameras. This new PTZ camera features an advanced Image Signal Processor (ISP) and encompasses the innovation of the HD-18 the low light capability of the HD-19 and the Full HD performance of the HD-20 ClearVIEW Camera line.

This camera features native 1080p/60 and uses the latest 1/2.8-type Exmor high speed low noise CMOS image sensor technology with 2.38 total pixels. The ISP provides fast razor-sharp auto-focus routines incredible detail realistic textures and vivid colors. In addition the HD-20SE has an impressive low-light performance of 0.3 Lux (color) and 0.03 Lux (B/W)

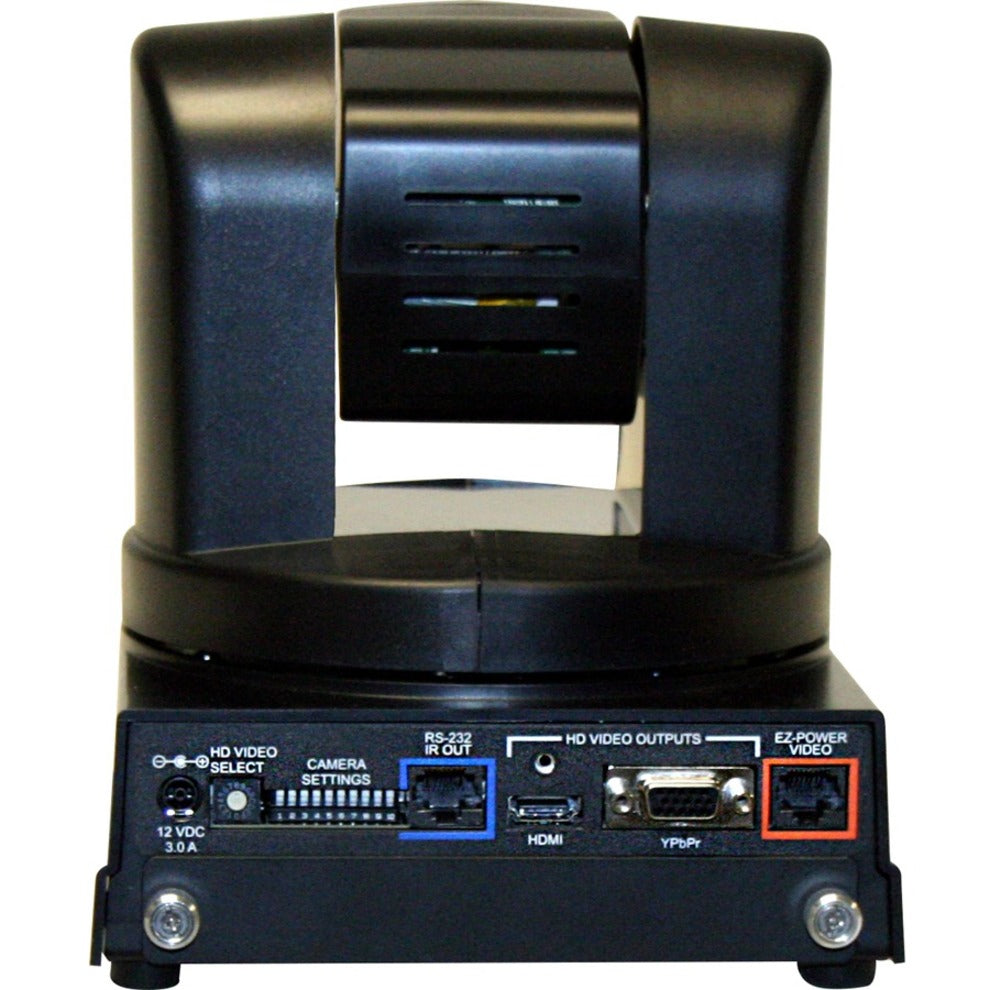

As the name suggests the HD-20SE features a 20X optical zoom multi-element glass lens and a 63-degree wide to 3.47-degree tele horizontal field of view. Outputs include simultaneous HDMI YPbPr and HSDS and support both drop framed and non-drop framed HD video resolutions.

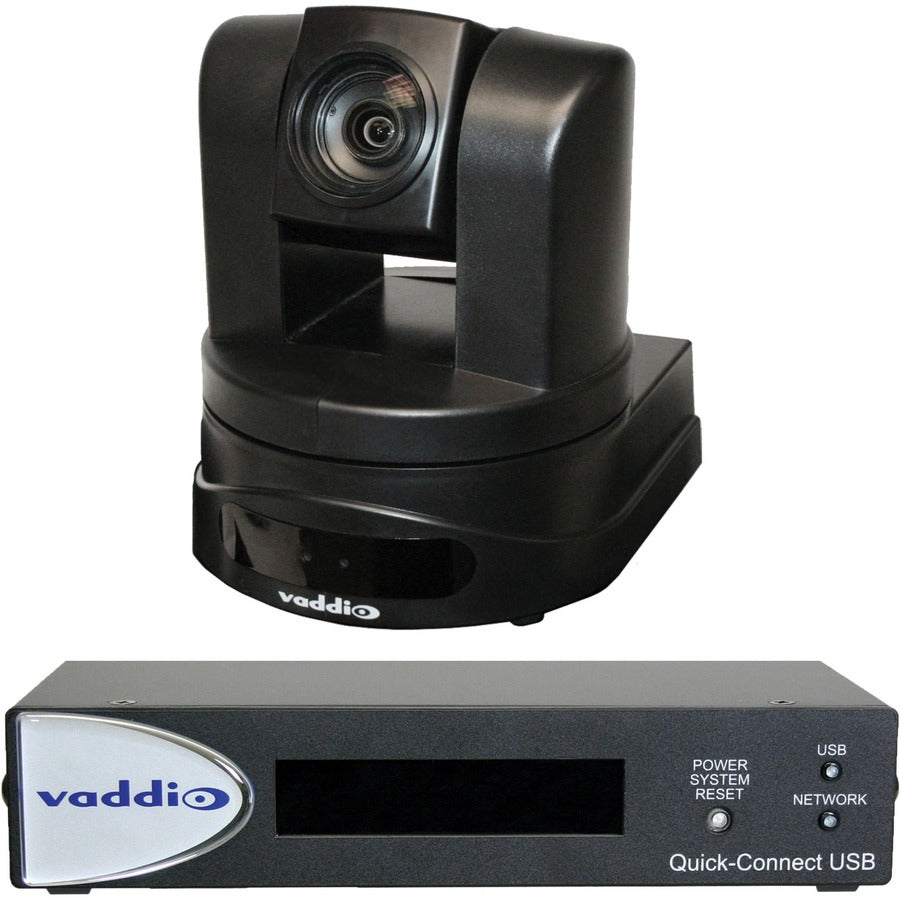

When paired with the Quick-Connect USB Interface the outputs include USB 2.0 (UVC) Streaming or IP (H.264) Streaming in RTSP or HLS formats with IP control and simultaneous HDMI and HD analog component (YPbPr) video outputs.

More from the Manufacturer

Packaged Quantity1
Recording FormatsHD
Package Contents
  • ClearVIEW HD-20SE Surveillance Camera
  • 1 x Vaddio IR Remote Commander
  • 1 x EZCamera Control Adapter (RJ-45F to DE-9F)
  • 1 x 12 VDC 3.0 Amp Switching Power Supply
  • 1 x AC Power Cord Set
  • 1 x Quick-Start Guide (1-pager)
  • Quick-Connect USB Interface
  • Wall Mount & Mounting Hardware
Limited Warranty2 Year
Weight (Approximate)5.60 lb
