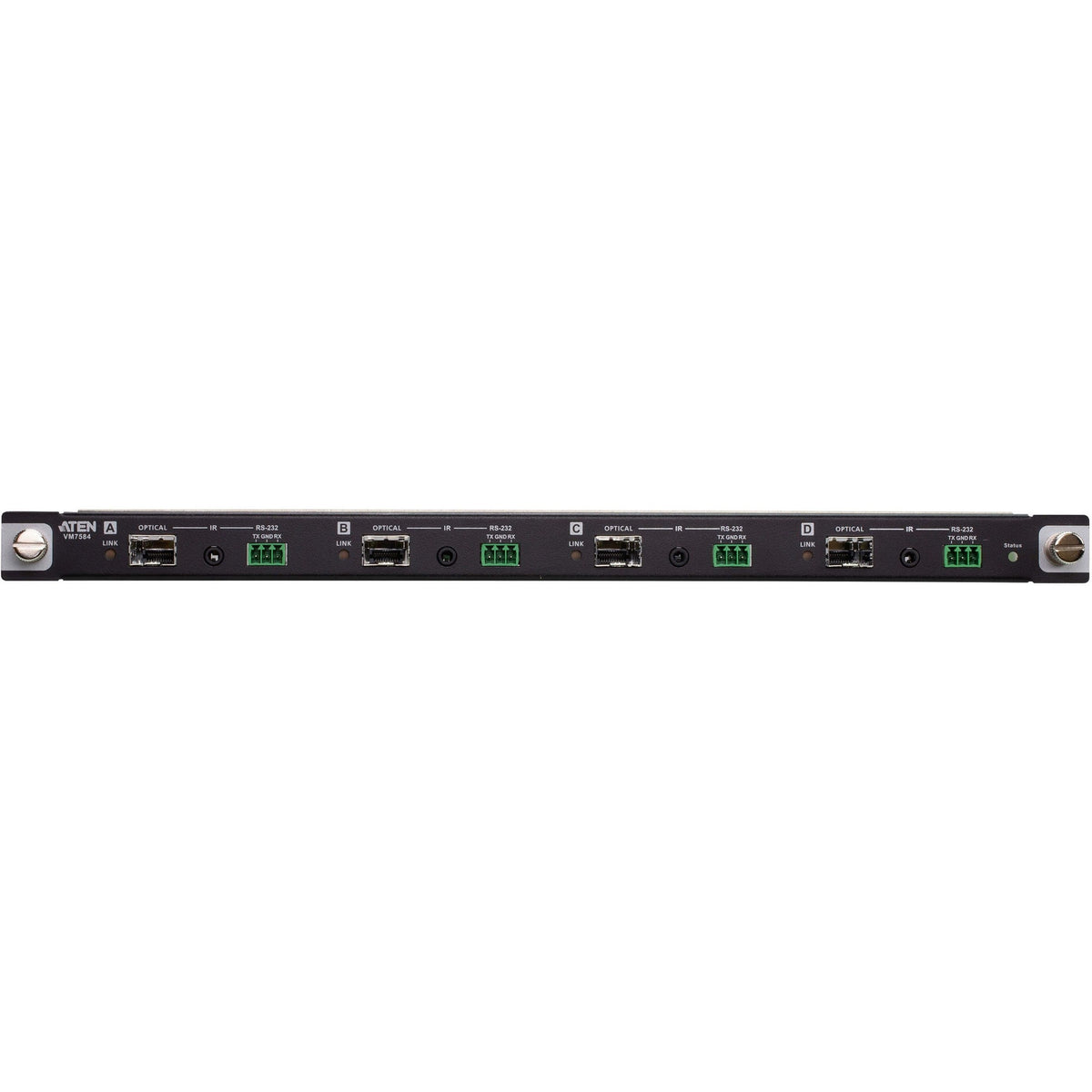

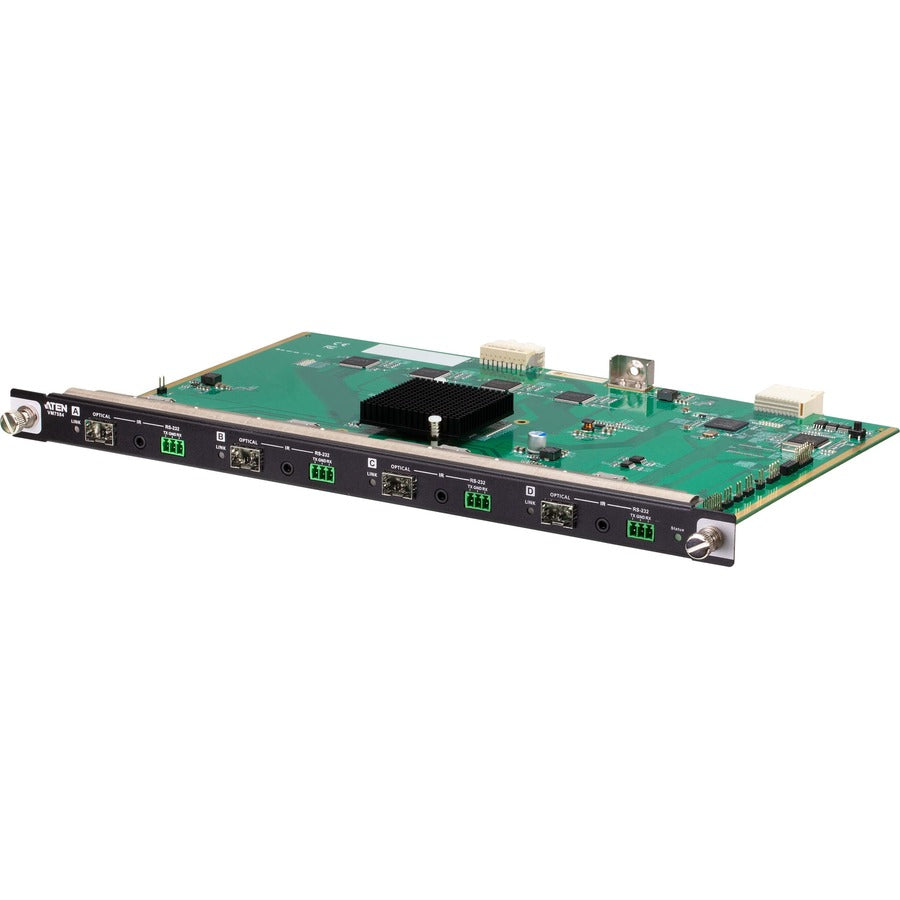

VanCryst VM7584K2 4-Port 10G Optical Input Board (4K@10km (K2 SM))

VanCryst VM7584K2 4-Port 10G Optical Input Board (4K@10km (K2 SM))

SKU: 1063574277      MFR: ATEN Technology Inc

GTIN: 672792011245

Product Description

VanCryst VM7584K2 4-Port 10G Optical Input Board (4K@10km (K2 SM)) - 9.4" Width x 0.9" Height x 13.9" Length - Black - Metal

Manufacturer : ATEN Technology Inc

Manufacturer Part No : VM7584K2

Features

  • Compatible with the VM3250 / VM3200 / VM1600A; mix and match with modular I/O boards of any type for optimum flexibility
  • Extends audio/video IR and RS-232 control signals over long distances via duplex fiber optic cables
  • Superior video quality over long-distance transmission - up to 4096 x 2160@60Hz (4:2:0) 300m with VM7584K1 over multimode cables or 10km with VM7584K2 over single-mode cables
  • HDMI (3D Deep Color 4K); HDCP 2.2 compatible
  • Consumer Electronics Control (CEC) support
  • Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices such as touch screens and barcode scanners
  • Bi-directional IR channel - IR transmission is processed one direction at a time ranging from 30 kHz to 60 kHz
  • EDID Expert™ - selects optimum EDID settings for smooth power-up high-quality display and use of the best resolutions across different screens
  • Hot-swappable fiber optic module and I/O boards for easy integration and maintenance

Product Details

Product ColorBlack
Height0.9"
Width9.4"
Brand NameVanCryst
Compatibility

VanCryst Modular Matrix Switch:

  • VM3250
  • VM3200
  • VM1600A
Length13.9"
ManufacturerATEN Technology Inc
Product ModelVM7584K2
Product NameVM7584K2 4-Port 10G Optical Input Board (4K@10km (K2 SM))
Product LineProfessional
Application/UsageMatrix Switcher
Manufacturer Part NumberVM7584K2
Manufacturer Website Addresshttp://www.aten.com/us/en/
Marketing Information

The VM7584 4-Port 10G Optical Input Board offers an easy way to route 4 HDMI sources to HDMI displays through optical extenders and up to 16/32 input and 16/32 output connections on an ATEN Modular Matrix Switch through various AV interfaces.

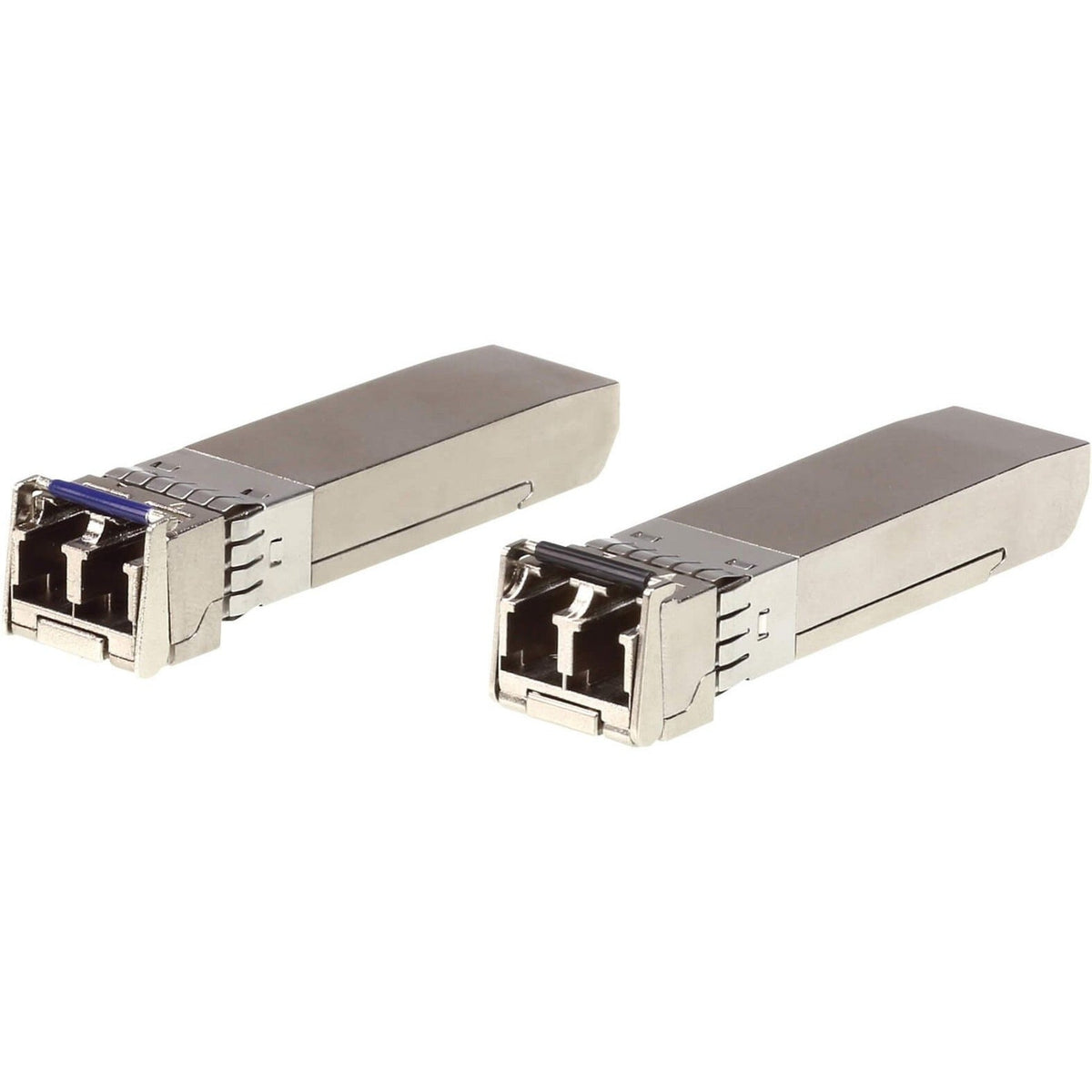

Designed with fiber optics technology for long-distance transmission the VM7584 along with its SFP+ modules extends uncompressed 4K signal up to 300 m (using VM7584K1) or 10 km (using VM7584K2) over duplex fiber optic cables. The optical fiber simplifies cabling by guaranteeing an interference-free long-haul transmission of audio video IR and RS-232 control signals over one single set of duplex cables that easily connects to the SFP+ slot. Moreover the VM7584 supports a high data rate of 10.2 Gbps and meets HDMI Specifications that include 3D Deep Color and 4K to ensure superior video quality.

The ATEN VM input/output boards are hot-swappable which gives system integrators great flexibility and efficiency for installation and maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for scalable video-critical applications.
MaterialMetal
Weight (Approximate)1.26 lb
Product FamilyProfessional
View full details
$3,161.99 USD
$3,161.99
Sale Sold out

Back Order

Get it by Thu, Dec 03 - Tue, Dec 08


Update


Shipping calculated at checkout.

VanCryst VM7584K2 4-Port 10G Optical Input Board (4K@10km (K2 SM)) - 9.4" Width x 0.9" Height x 13.9" Length - Black - Metal

Manufacturer : ATEN Technology Inc

Manufacturer Part No : VM7584K2

Features

  • Compatible with the VM3250 / VM3200 / VM1600A; mix and match with modular I/O boards of any type for optimum flexibility
  • Extends audio/video IR and RS-232 control signals over long distances via duplex fiber optic cables
  • Superior video quality over long-distance transmission - up to 4096 x 2160@60Hz (4:2:0) 300m with VM7584K1 over multimode cables or 10km with VM7584K2 over single-mode cables
  • HDMI (3D Deep Color 4K); HDCP 2.2 compatible
  • Consumer Electronics Control (CEC) support
  • Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices such as touch screens and barcode scanners
  • Bi-directional IR channel - IR transmission is processed one direction at a time ranging from 30 kHz to 60 kHz
  • EDID Expert™ - selects optimum EDID settings for smooth power-up high-quality display and use of the best resolutions across different screens
  • Hot-swappable fiber optic module and I/O boards for easy integration and maintenance

Product Details

Product ColorBlack
Height0.9"
Width9.4"
Brand NameVanCryst
Compatibility

VanCryst Modular Matrix Switch:

  • VM3250
  • VM3200
  • VM1600A
Length13.9"
ManufacturerATEN Technology Inc
Product ModelVM7584K2
Product NameVM7584K2 4-Port 10G Optical Input Board (4K@10km (K2 SM))
Product LineProfessional
Application/UsageMatrix Switcher
Manufacturer Part NumberVM7584K2
Manufacturer Website Addresshttp://www.aten.com/us/en/
Marketing Information

The VM7584 4-Port 10G Optical Input Board offers an easy way to route 4 HDMI sources to HDMI displays through optical extenders and up to 16/32 input and 16/32 output connections on an ATEN Modular Matrix Switch through various AV interfaces.

Designed with fiber optics technology for long-distance transmission the VM7584 along with its SFP+ modules extends uncompressed 4K signal up to 300 m (using VM7584K1) or 10 km (using VM7584K2) over duplex fiber optic cables. The optical fiber simplifies cabling by guaranteeing an interference-free long-haul transmission of audio video IR and RS-232 control signals over one single set of duplex cables that easily connects to the SFP+ slot. Moreover the VM7584 supports a high data rate of 10.2 Gbps and meets HDMI Specifications that include 3D Deep Color and 4K to ensure superior video quality.

The ATEN VM input/output boards are hot-swappable which gives system integrators great flexibility and efficiency for installation and maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for scalable video-critical applications.
MaterialMetal
Weight (Approximate)1.26 lb
Product FamilyProfessional
