• 4PORT TRUE 4K HDMI INPUT CARD
    4PORT TRUE 4K HDMI INPUT CARD
  • 4PORT TRUE 4K HDMI INPUT CARD
  • 4PORT TRUE 4K HDMI INPUT CARD
1 3

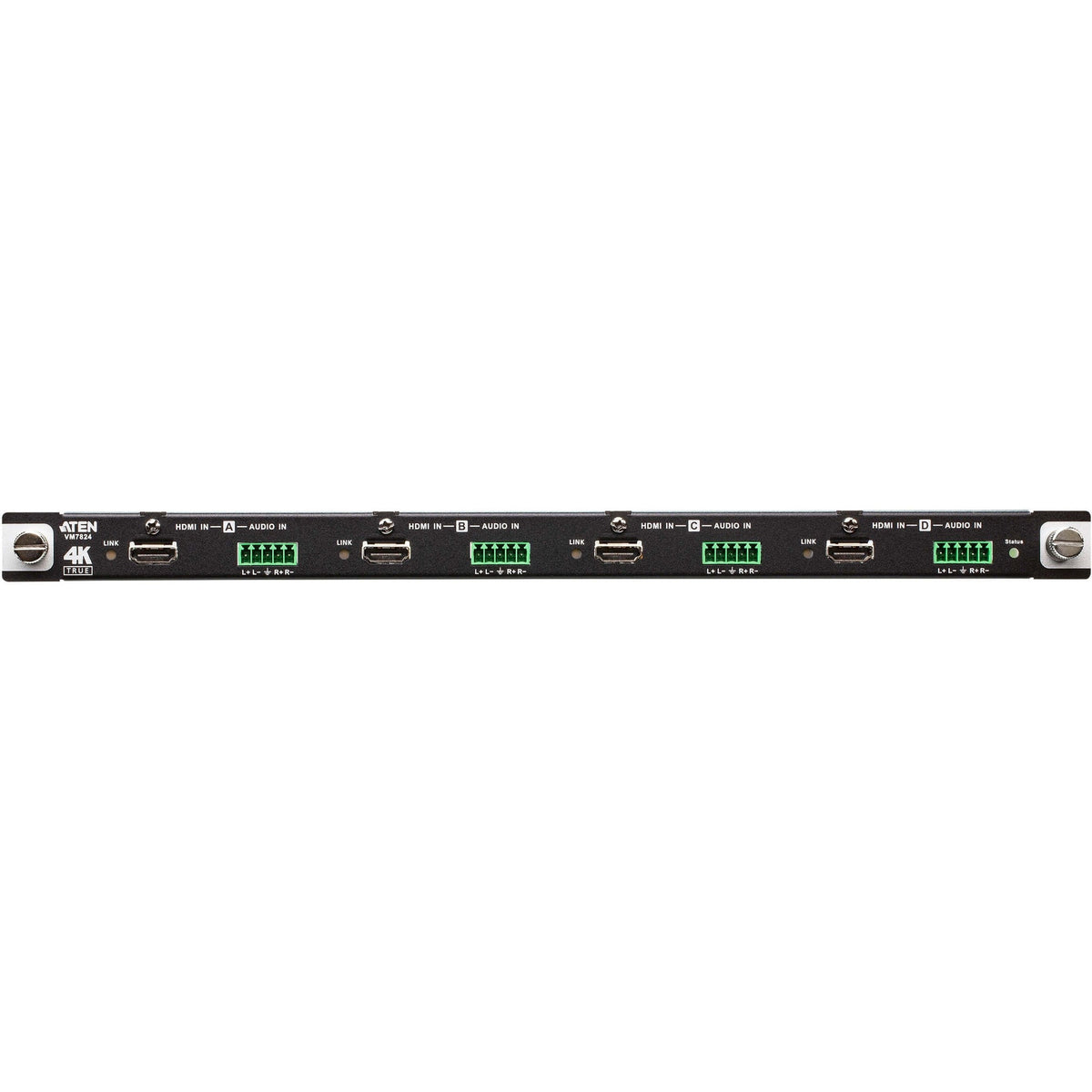

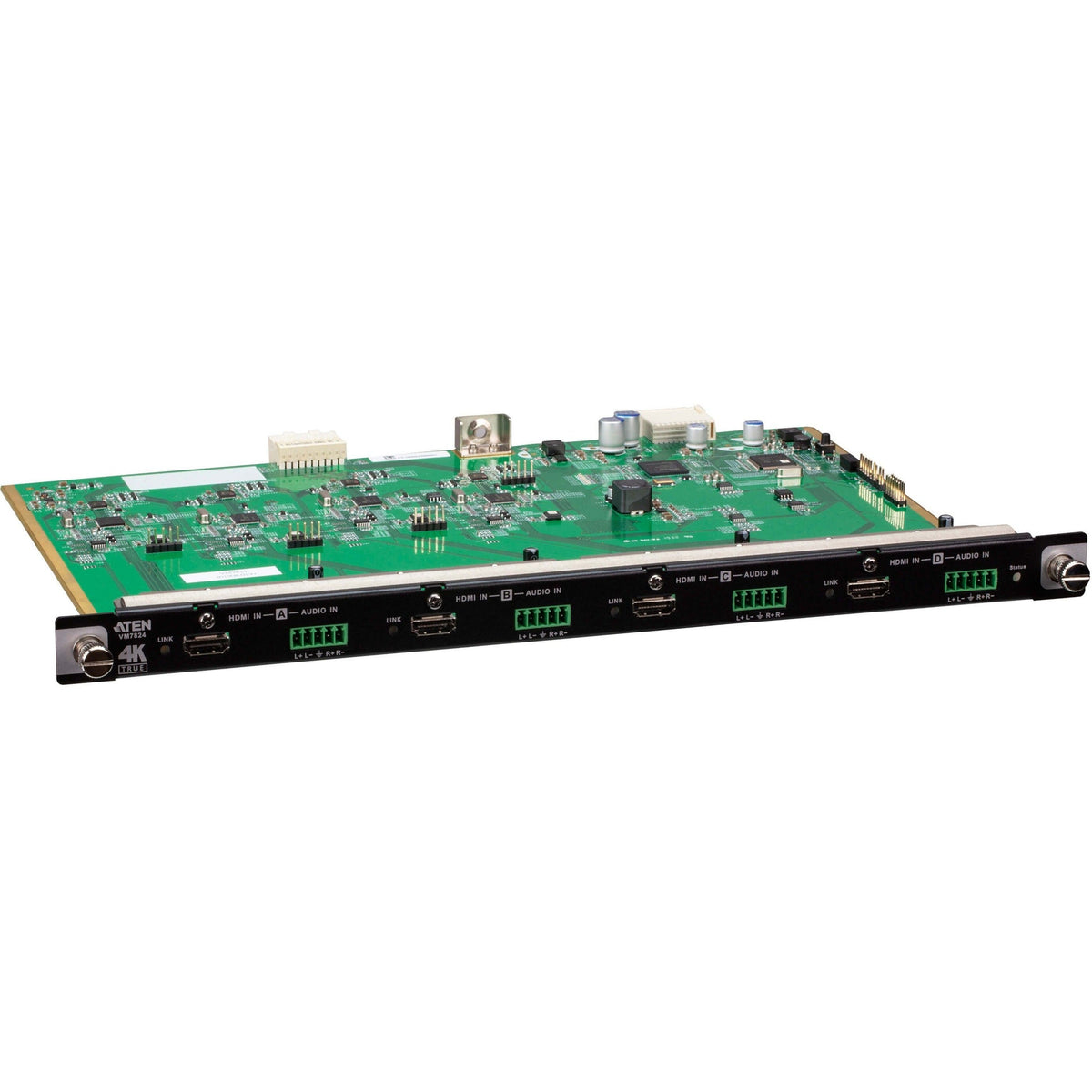

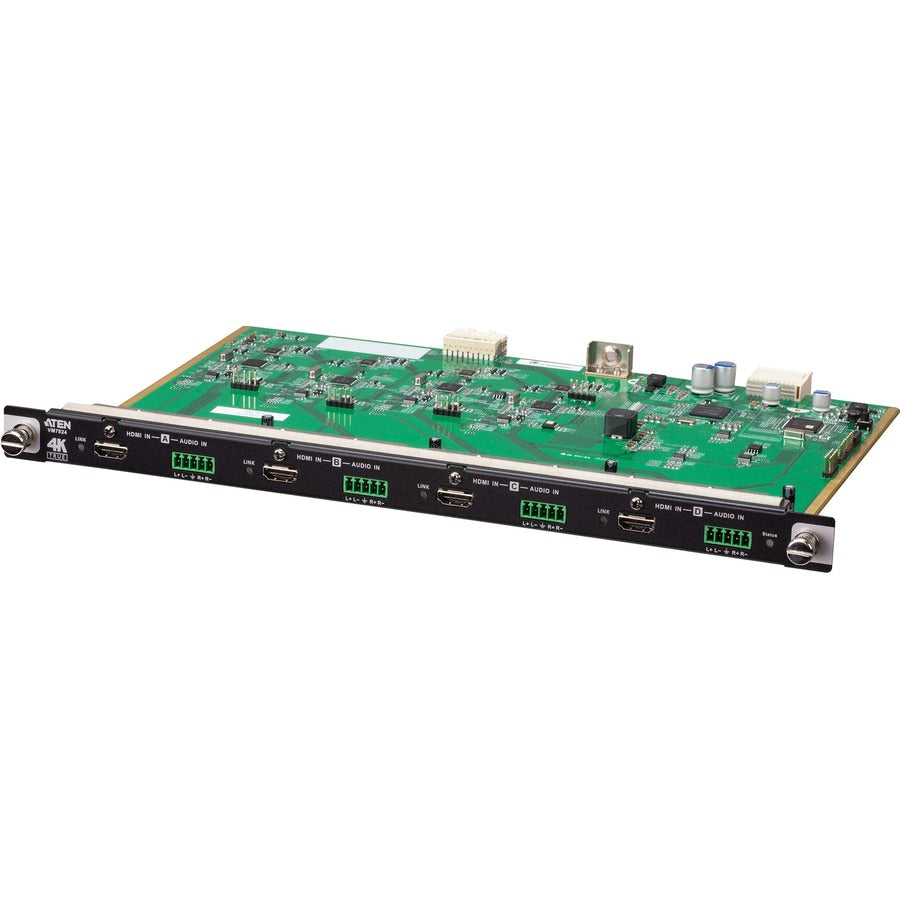

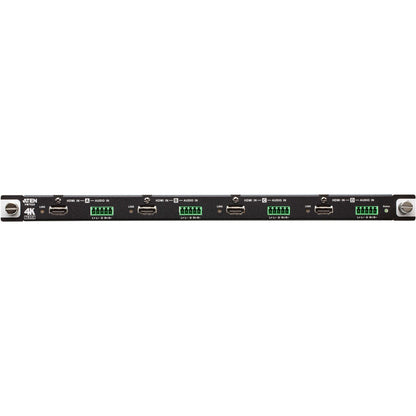

VanCryst VM7824 4-Port True 4K HDMI Input Board

VanCryst VM7824 4-Port True 4K HDMI Input Board

SKU: 1063574274      MFR: ATEN Technology Inc

GTIN: 672792011368

Product Description

VanCryst VM7824 4-Port True 4K HDMI Input Board - 9.4" Width x 0.9" Height x 13.9" Length - Metal

Manufacturer : ATEN Technology Inc

Manufacturer Part No : VM7824

Features

  • Compatible with the VM Modular Matrix Switches; mix and match with modular I/O boards of any type for optimum flexibility
  • True 4K Resolutions - handles uncompressed video resolutions up to 3840 x 2160 / 4096 x 2160 @ 60Hz (4:4:4)
  • 4K Scaler - features a video scaling function to integrate a video wall seamlessly with various output video resolutions (VM8824)
  • Seamless Switch™ - features close-to-zero second switching that provides continuous video streams real-time switching and stable signal transmissions (VM8824)
  • Video Wall - allows you to create custom video wall layouts via intuitive web GUI (VM8824)
  • True 4K EDID Expert - selects optimum EDID settings for smooth power-up high-quality display and use of the best resolution across different screens
  • FrameSync - prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate (VM8824)
  • Audio-enabled HDMI audio can be extracted and stereo audio can be embedded
  • Cable Quality Tester - examines the HDMI cable quality
  • HDMI (3D Deep Color 4K); HDCP 2.2 Compatible
  • Consumer Electronics Control (CEC) support

Product Details

Product TypeHDMI Input Board
Height0.9"
Width9.4"
Brand NameVanCryst
Form FactorWall Mountable
Length13.9"
ManufacturerATEN Technology Inc
Product ModelVM7824
Product NameVM7824 4-Port True 4K HDMI Input Board
Product LineProfessional
Application/UsageMatrix Switcher
Manufacturer Part NumberVM7824
Manufacturer Website Addresshttp://www.aten.com/us/en/
Marketing InformationThe VM7824/VM8824 is a True 4K HDMI input/output board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 HDMI audio/video sources to 4 displays with True 4K high-definition images. In addition to the HDMI interface that carries digital A/V signal the VM7824/VM8824 also provides 4 stereo audio input/output ports that enable stereo audio embedding or HDMI audio extraction.

Considering video wall applications always require fast video switching and resolution adaptation the VM8824 supports Seamless Switch™ technology that provides real-time video switching a built in 4K scaler that handles different video resolutions and the EDID Expert technology for fast smooth switching between displays. All of ATEN's VM series input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The VM series input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for multi-interface video applications.
MaterialMetal
Weight (Approximate)1.21 lb
Product FamilyProfessional
View full details
$1,324.99 USD
$1,324.99
Sale Sold out

In Stock - 2 (Available by Wed, Oct 21 - Mon, Oct 26)


Update


Shipping calculated at checkout.

VanCryst VM7824 4-Port True 4K HDMI Input Board - 9.4" Width x 0.9" Height x 13.9" Length - Metal

Manufacturer : ATEN Technology Inc

Manufacturer Part No : VM7824

Features

  • Compatible with the VM Modular Matrix Switches; mix and match with modular I/O boards of any type for optimum flexibility
  • True 4K Resolutions - handles uncompressed video resolutions up to 3840 x 2160 / 4096 x 2160 @ 60Hz (4:4:4)
  • 4K Scaler - features a video scaling function to integrate a video wall seamlessly with various output video resolutions (VM8824)
  • Seamless Switch™ - features close-to-zero second switching that provides continuous video streams real-time switching and stable signal transmissions (VM8824)
  • Video Wall - allows you to create custom video wall layouts via intuitive web GUI (VM8824)
  • True 4K EDID Expert - selects optimum EDID settings for smooth power-up high-quality display and use of the best resolution across different screens
  • FrameSync - prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate (VM8824)
  • Audio-enabled HDMI audio can be extracted and stereo audio can be embedded
  • Cable Quality Tester - examines the HDMI cable quality
  • HDMI (3D Deep Color 4K); HDCP 2.2 Compatible
  • Consumer Electronics Control (CEC) support

Product Details

Product TypeHDMI Input Board
Height0.9"
Width9.4"
Brand NameVanCryst
Form FactorWall Mountable
Length13.9"
ManufacturerATEN Technology Inc
Product ModelVM7824
Product NameVM7824 4-Port True 4K HDMI Input Board
Product LineProfessional
Application/UsageMatrix Switcher
Manufacturer Part NumberVM7824
Manufacturer Website Addresshttp://www.aten.com/us/en/
Marketing InformationThe VM7824/VM8824 is a True 4K HDMI input/output board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 HDMI audio/video sources to 4 displays with True 4K high-definition images. In addition to the HDMI interface that carries digital A/V signal the VM7824/VM8824 also provides 4 stereo audio input/output ports that enable stereo audio embedding or HDMI audio extraction.

Considering video wall applications always require fast video switching and resolution adaptation the VM8824 supports Seamless Switch™ technology that provides real-time video switching a built in 4K scaler that handles different video resolutions and the EDID Expert technology for fast smooth switching between displays. All of ATEN's VM series input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The VM series input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for multi-interface video applications.
MaterialMetal
Weight (Approximate)1.21 lb
Product FamilyProfessional
