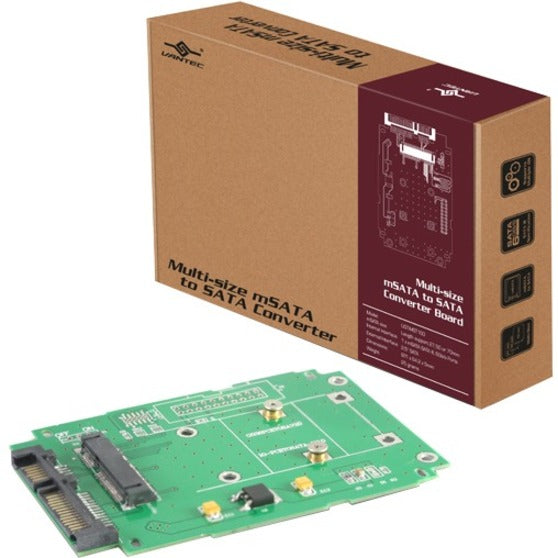

The Multi-size mSATA to SATA Converter Board convert an mSATA SSD into a SATA converter board for easy integration into any systems embedded systems customs design that requires small form factor. This design offers the flexibility to install the mSATA card anywhere that requires a SATA interface for compatibility purpose. This Converter Board offers the same 6Gb/s performance that you will expect from the mSATA using the pass thru function and the unique design allows for different size mSATA card like 27mm 50mm and 70mm in length to be fitted on to the Converter board and it only takes up 5mm in thickness.

• Multi-size mSATA to SATA Converter Board
• 1 x Quick install Guide
• 1 x Screws Set

• Convert mSATA to standard 2.5" SATA SSD
• Support different length mSATA card 27mm 50mm or 70mm
• 2.5" SATA SSD form factor only 8mm thickness
• Compatible with SATA I/II/III
• Pass thru design for maximum 6Gb/s performance
• Simple design with mounting hole for custom installation into any embedded devices
• Uses minimum power for better power management
• Locking Mechanism to hold mSATA SSD in place
• Fully Compatible with SATA 2.6
• Support ATA/ATAP-7 Specification
• Support Dual Power Voltage: 1.8V and 3.3V
