• Veracity Gigabit Ethernet Extender
    Veracity Gigabit Ethernet Extender
1 1

Veracity Gigabit Ethernet Extender

Veracity Gigabit Ethernet Extender

SKU: 1058686486      MFR: Veracity USA Inc

GTIN: 892314002067

Product Description

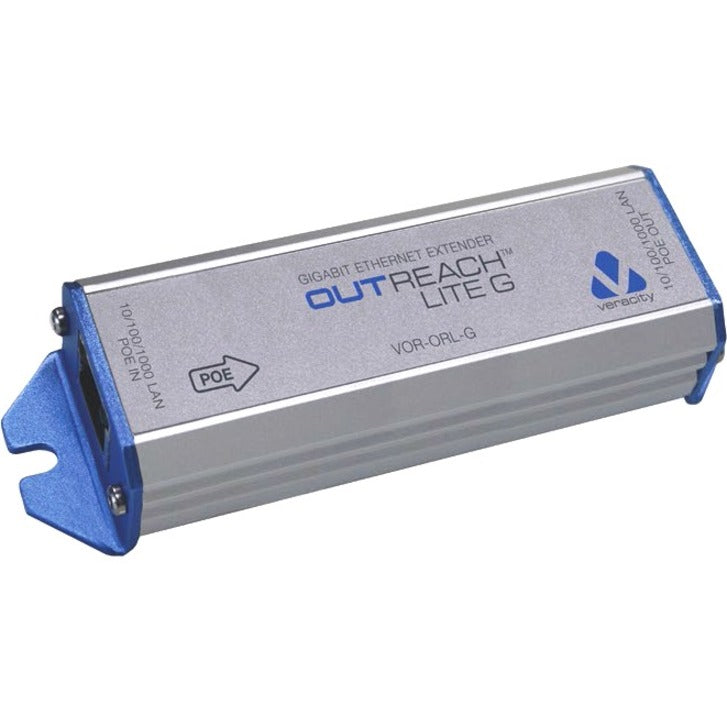

Veracity Gigabit Ethernet Extender - Network (RJ-45) - 656.17 ft Extended Range

Manufacturer : Veracity USA Inc

Manufacturer Part No : VOR-ORL-G

Features

  • Instantly doubles gigabit network range to 200 metres
  • No local power required
  • Full unrestricted gigabit network bandwidth
  • Universal 10/100/1000 compatibility
  • POE powered device
  • Integrated mounting holes

Product Details

Product TypeNetwork Extender
Environmentally FriendlyYes
Network (RJ-45)Yes
TAA CompliantYes
Maximum Extended Range656.17 ft
NDAA CompliantYes
Country of OriginChina
Height1"
Width1.4"
Brand NameVeracity
Length4.7"
ManufacturerVeracity USA Inc
Product NameGigabit Ethernet Extender
Product LineOUTREACH Lite G
Manufacturer Part NumberVOR-ORL-G
Manufacturer Website Addresshttp://www.veracityusa.com
Marketing InformationGigabit Ethernet is commonly used for Local Area Network (LAN) installations although 100Base-TX is often used for single IP camera connections. As IP devices become more diverse many applications demand network connections that exceed the maximum 100 metres (328 feet) distance limit for cabled Ethernet.

OUTREACH Lite G provides an instant solution to this restriction for gigabit Ethernet connections (a 100Base-TX only version of OUTREACH Lite is also available - see table on next page).

Simply connect an OUTREACH Lite G in the middle of a network cable run to double the available range to 200 metres (656 feet).

Simple installation
OUTREACH Lite G takes advantage of the universal 802.3af/at/bt POE standards so it can draw its own power from the network connection. No local power is required therefore OUTREACH Lite G can be located exactly where it is needed.

If your network switch has POE simply connect OUTREACH Lite G up to 100 metres from the switch and it will deliver another 100 metres reach over regular Cat5e or similar cable (Diagram 1). If POE is not available the link can easily be upgraded using a low-cost POE injector such as Veracity's gigabit compatible OUTSOURCE (Diagram 2).

No set-up or network configuration is required as OUTREACH Lite G automatically sets up network speed duplex and crossover on connection and does not require an IP or MAC address.

Go further
If POE and network extension beyond 200 metres (656 feet) is required Veracity's OUTREACH Max G may be installed to extend Ethernet and POE to OUTREACH Lite G For example a 300 metre (984 feet) connection between a POE switch and another network device can be achieved by fitting an OUTREACH Max G at 100 metres along the cable followed by 100m then an OUTREACH Lite G and up to 100m to the gigabit network device.

For longer Ethernet runs Veracity recommends LONGSPAN long distance point-to-point devices which can achieve 100Base-TX connections with POE at up to 820m (2690ft).

No restrictions
Because OUTREACH Max G and OUTREACH Lite G simply restore the network connection every 100 metres the full bandwidth of gigabit Ethernet is maintained across the entire link. This maximises performance and transparency with no risk of a reduced or unpredictable bandwidth even at distances of several hundred metres or more.
Product FamilyOUTREACH Lite G
View full details
$315.99 USD
$315.99
Sale Sold out

Dropship

Get it by Sun, Dec 15 - Fri, Dec 20


Update


Shipping calculated at checkout.

Veracity Gigabit Ethernet Extender - Network (RJ-45) - 656.17 ft Extended Range

Manufacturer : Veracity USA Inc

Manufacturer Part No : VOR-ORL-G

Features

  • Instantly doubles gigabit network range to 200 metres
  • No local power required
  • Full unrestricted gigabit network bandwidth
  • Universal 10/100/1000 compatibility
  • POE powered device
  • Integrated mounting holes

Product Details

Product TypeNetwork Extender
Environmentally FriendlyYes
Network (RJ-45)Yes
TAA CompliantYes
Maximum Extended Range656.17 ft
NDAA CompliantYes
Country of OriginChina
Height1"
Width1.4"
Brand NameVeracity
Length4.7"
ManufacturerVeracity USA Inc
Product NameGigabit Ethernet Extender
Product LineOUTREACH Lite G
Manufacturer Part NumberVOR-ORL-G
Manufacturer Website Addresshttp://www.veracityusa.com
Marketing InformationGigabit Ethernet is commonly used for Local Area Network (LAN) installations although 100Base-TX is often used for single IP camera connections. As IP devices become more diverse many applications demand network connections that exceed the maximum 100 metres (328 feet) distance limit for cabled Ethernet.

OUTREACH Lite G provides an instant solution to this restriction for gigabit Ethernet connections (a 100Base-TX only version of OUTREACH Lite is also available - see table on next page).

Simply connect an OUTREACH Lite G in the middle of a network cable run to double the available range to 200 metres (656 feet).

Simple installation
OUTREACH Lite G takes advantage of the universal 802.3af/at/bt POE standards so it can draw its own power from the network connection. No local power is required therefore OUTREACH Lite G can be located exactly where it is needed.

If your network switch has POE simply connect OUTREACH Lite G up to 100 metres from the switch and it will deliver another 100 metres reach over regular Cat5e or similar cable (Diagram 1). If POE is not available the link can easily be upgraded using a low-cost POE injector such as Veracity's gigabit compatible OUTSOURCE (Diagram 2).

No set-up or network configuration is required as OUTREACH Lite G automatically sets up network speed duplex and crossover on connection and does not require an IP or MAC address.

Go further
If POE and network extension beyond 200 metres (656 feet) is required Veracity's OUTREACH Max G may be installed to extend Ethernet and POE to OUTREACH Lite G For example a 300 metre (984 feet) connection between a POE switch and another network device can be achieved by fitting an OUTREACH Max G at 100 metres along the cable followed by 100m then an OUTREACH Lite G and up to 100m to the gigabit network device.

For longer Ethernet runs Veracity recommends LONGSPAN long distance point-to-point devices which can achieve 100Base-TX connections with POE at up to 820m (2690ft).

No restrictions
Because OUTREACH Max G and OUTREACH Lite G simply restore the network connection every 100 metres the full bandwidth of gigabit Ethernet is maintained across the entire link. This maximises performance and transparency with no risk of a reduced or unpredictable bandwidth even at distances of several hundred metres or more.
Product FamilyOUTREACH Lite G
