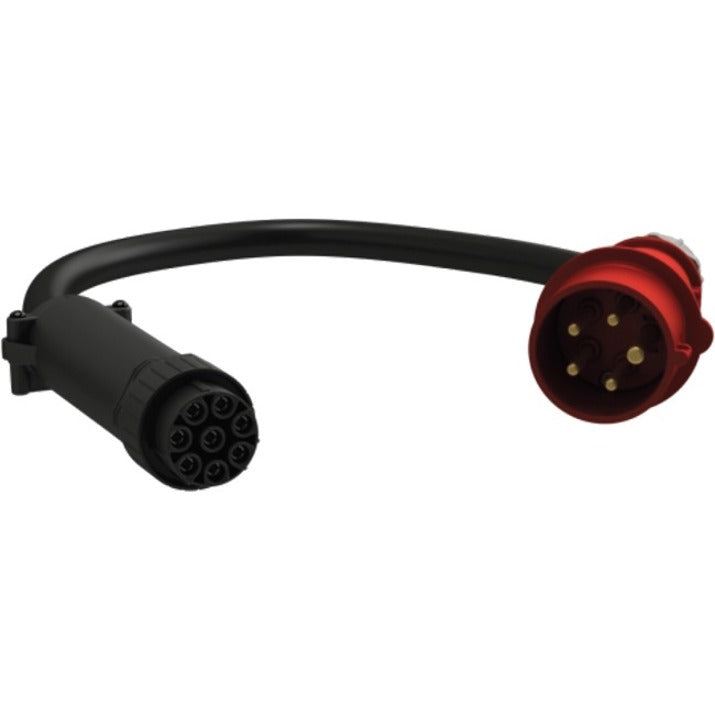

Vertiv Geist PDU Facility Side Cable - 16/20A 230/400V WYE

Vertiv Geist PDU Facility Side Cable - 16/20A 230/400V WYE

SKU: 1061288754      MFR: Vertiv

GTIN: 767041029826

Product Description

Vertiv Geist PDU Facility Side Cable - 16/20A 230/400V WYE - Vertiv Geist PDU - Facility Side Cable 16/20A 230/400V WYE 10ft/3m (FSC3U001)

Manufacturer : Vertiv

Manufacturer Part No : FSC3U001

Features

  • Power Cable for the Vertiv Geist Universal Rack PDU
  • Plug Type: 16/20A EC20309 3P+N+E (IP44)
  • Power Rating: 16/20A 230V/400V WYE
  • Max Power Capacity: 11kW
  • Cord Length: 10ft/3m

Product Details

Product TypeStandard Power Cord
Environmentally FriendlyYes
Environmental CertificationRoHS
First End Connector TypeIEC 60309 3P+N+E
First End Connector Detail1 x 5-pin IEC 60309 3P+N+E Male
Second End Connector TypeUniversal Connector
Second End Connector Detail1 x 8-pin Universal Connector Female
Cord Length10 ft
Certifications & Standards
  • CE Marked
  • EN 55032 and EN 55024
  • IEC 60950-1 (CB Certificate Available)
  • UL & c-UL Listed 60950
Voltage Rating230 V AC
Voltage Rating415 V AC
Current Rating16 A
Current Rating20 A
Brand NameGeist
CompatibilityVertiv Geist Universal Rack PDU (UPDU)
Frequency50 Hz
Frequency60 Hz
ManufacturerVertiv
Product ModelCSU-S02A3-43000-2PS56B-S
Product NameCSU-S02A3-43000-2PS56B-S Standard Power Cord
Device SupportedPDU
Manufacturer Part NumberFSC3U001
Manufacturer Website Addresshttp://www.vertiv.com/
Marketing Information

The Vertiv Geist Facility Side Cable (FSC3U001) is the detachable power cord used to define the input power configuration of the Vertiv Geist Universal Power Distribution Unit (Vertiv Geist UPDU). This 10-foot cord is equipped with a 3P+N+E plug. It has a max power capacity of 11kW and has a power rating of 16/20A and 230/400V WYE.

Packaged Quantity1
Limited Warranty3 Year
Additional Information
  • Voltage: 208-240/360-415V WYE
  • Current: 16/20A x 3 Phase WYE
  • Power Cable Wire Gauge: 9/5 (6mm2)
  • Plug Type: Splashproof IP44
  • Max Plug kW: 11.0kW (230V)
  • UPDU Voltage per Receptacle/Socket: 208-240V
Connector on First EndIEC 60309 3P+N+E
Connector on Second EndUniversal Connector
