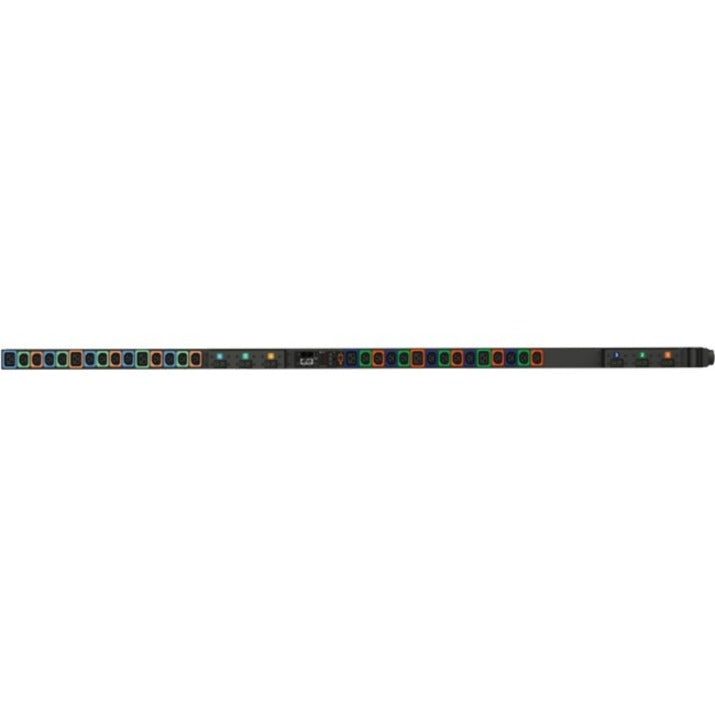

• Vertiv Geist PDU - Variable Power Configuration (UPDU) rPDU 16A - 60A C13 C19 22kW Monitored
    Vertiv Geist PDU - Variable Power Configuration (UPDU) rPDU 16A - 60A C13 C19 22kW Monitored
1 1

Vertiv Geist PDU - Variable Power Configuration (UPDU) rPDU 16A - 60A C13 C19 22kW Monitored

Vertiv Geist PDU - Variable Power Configuration (UPDU) rPDU 16A - 60A C13 C19 22kW Monitored

SKU: 1061288751      MFR: Vertiv

GTIN: 767041029796

Product Description

Vertiv Geist PDU - Variable Power Configuration (UPDU) rPDU 16A - 60A C13 C19 22kW Monitored - 16A - 60A 100V-415V 1 Phase-3 Phase Unit-Level Monitoring EC

Manufacturer : Vertiv

Manufacturer Part No : UI30007L

Features

  • The rack PDU supports single phase or three phase power 16A to 63A 120V to 415V
  • Remotely monitor and manage the smart power strip through a serial or Internet connection
  • Worry less about accidental disconnections with the U-Locks on the 24 C13 and 6 C19 receptacles
  • Rest assured your unit meets global compliance tests including - TAA Compliance RoHS China RoHS UL CE and RCM
  • Receive an extra two years on top of the three-year warranty when you register the Vertiv Geist UPDU within 120 days of purchase

Product Details

Product TypePDU
PhaseThree Phase
Receptacle TypeU-Lock IEC 60320 C13
Environmentally FriendlyYes
Environmental CertificationRoHS
Network (RJ-45)Yes
TAA CompliantYes
Energy StarNo
PDU TypeMonitored
Remote Outlet SwitchingNo
Mounting OrientationVertical
Power Rating (Watt)22 kW
Locking ReceptaclesIEC 60320 C13
Receptacle Detail24 x U-Lock IEC 60320 C13
Plug/Connector Detail1 x Universal Input
Country of OriginUnited States
Width2"
Depth2.3"
Product SeriesrPDU
Rack Height0U
Brand NameGeist
Plug/Connector TypeUniversal Input
Input Voltage Range230 V AC - 415 V AC
Input Current63 A
Length70"
Management
  • DHCP
  • HTTP
  • HTTPS
  • IPv4
  • IPv6
  • LDAP
  • NTP
  • RADIUS
  • RSTP
  • SSH
  • SMTP
  • SNMP (v1/v2c/v3)
  • Syslog
  • TACACS+
ManufacturerVertiv
Product ModelDU03E4W1-30PN67-2S02A9K00-S-A
Product NameUPDU UI30007L rPDU
Mount TypeRack-mountable
Protection TypeOvercurrent Protection
Input Voltage230 V AC
Input Voltage415 V AC
Manufacturer Part NumberUI30007L
Manufacturer Website Addresshttp://www.vertiv.com/
Marketing Information

The Vertiv Geist UI30007L Universal Power Distribution Unit (Vertiv Geist UPDU) is a versatile rack power distribution unit (rPDU) with a universal input and a max power capacity of 22kW. This universal rPDU enables fast and easy installation since it supports common AC power configurations ranging from 16A-63A and 120V-415V in both single phase and three phase configurations. Just choose the right Facility Side Cable (sold separately) to define the input power configuration you need to install the Vertiv Geist UPDU in your network system. This model has 24 locking C13 and 6 locking C19 receptacles all equipped with the Vertiv patented U-Lock to lessen accidental disconnections. The hot-swappable Interchangeable Monitoring Device (IMD) on this intelligent rack PDU not only has ports for unit-level remote power monitoring and environmental monitoring but it also provides peace of mind that you can seamlessly update the unit's technology to adapt to your changing business needs.

More from the Manufacturer
Limited Warranty3 Year
Product FamilyrPDU
View full details
$2,643.99 USD
$2,643.99
Sale Sold out

Dropship


Update


Shipping calculated at checkout.

Vertiv Geist PDU - Variable Power Configuration (UPDU) rPDU 16A - 60A C13 C19 22kW Monitored - 16A - 60A 100V-415V 1 Phase-3 Phase Unit-Level Monitoring EC

Manufacturer : Vertiv

Manufacturer Part No : UI30007L

Features

  • The rack PDU supports single phase or three phase power 16A to 63A 120V to 415V
  • Remotely monitor and manage the smart power strip through a serial or Internet connection
  • Worry less about accidental disconnections with the U-Locks on the 24 C13 and 6 C19 receptacles
  • Rest assured your unit meets global compliance tests including - TAA Compliance RoHS China RoHS UL CE and RCM
  • Receive an extra two years on top of the three-year warranty when you register the Vertiv Geist UPDU within 120 days of purchase

Product Details

Product TypePDU
PhaseThree Phase
Receptacle TypeU-Lock IEC 60320 C13
Environmentally FriendlyYes
Environmental CertificationRoHS
Network (RJ-45)Yes
TAA CompliantYes
Energy StarNo
PDU TypeMonitored
Remote Outlet SwitchingNo
Mounting OrientationVertical
Power Rating (Watt)22 kW
Locking ReceptaclesIEC 60320 C13
Receptacle Detail24 x U-Lock IEC 60320 C13
Plug/Connector Detail1 x Universal Input
Country of OriginUnited States
Width2"
Depth2.3"
Product SeriesrPDU
Rack Height0U
Brand NameGeist
Plug/Connector TypeUniversal Input
Input Voltage Range230 V AC - 415 V AC
Input Current63 A
Length70"
Management
  • DHCP
  • HTTP
  • HTTPS
  • IPv4
  • IPv6
  • LDAP
  • NTP
  • RADIUS
  • RSTP
  • SSH
  • SMTP
  • SNMP (v1/v2c/v3)
  • Syslog
  • TACACS+
ManufacturerVertiv
Product ModelDU03E4W1-30PN67-2S02A9K00-S-A
Product NameUPDU UI30007L rPDU
Mount TypeRack-mountable
Protection TypeOvercurrent Protection
Input Voltage230 V AC
Input Voltage415 V AC
Manufacturer Part NumberUI30007L
Manufacturer Website Addresshttp://www.vertiv.com/
Marketing Information

The Vertiv Geist UI30007L Universal Power Distribution Unit (Vertiv Geist UPDU) is a versatile rack power distribution unit (rPDU) with a universal input and a max power capacity of 22kW. This universal rPDU enables fast and easy installation since it supports common AC power configurations ranging from 16A-63A and 120V-415V in both single phase and three phase configurations. Just choose the right Facility Side Cable (sold separately) to define the input power configuration you need to install the Vertiv Geist UPDU in your network system. This model has 24 locking C13 and 6 locking C19 receptacles all equipped with the Vertiv patented U-Lock to lessen accidental disconnections. The hot-swappable Interchangeable Monitoring Device (IMD) on this intelligent rack PDU not only has ports for unit-level remote power monitoring and environmental monitoring but it also provides peace of mind that you can seamlessly update the unit's technology to adapt to your changing business needs.

More from the Manufacturer
Limited Warranty3 Year
Product FamilyrPDU
