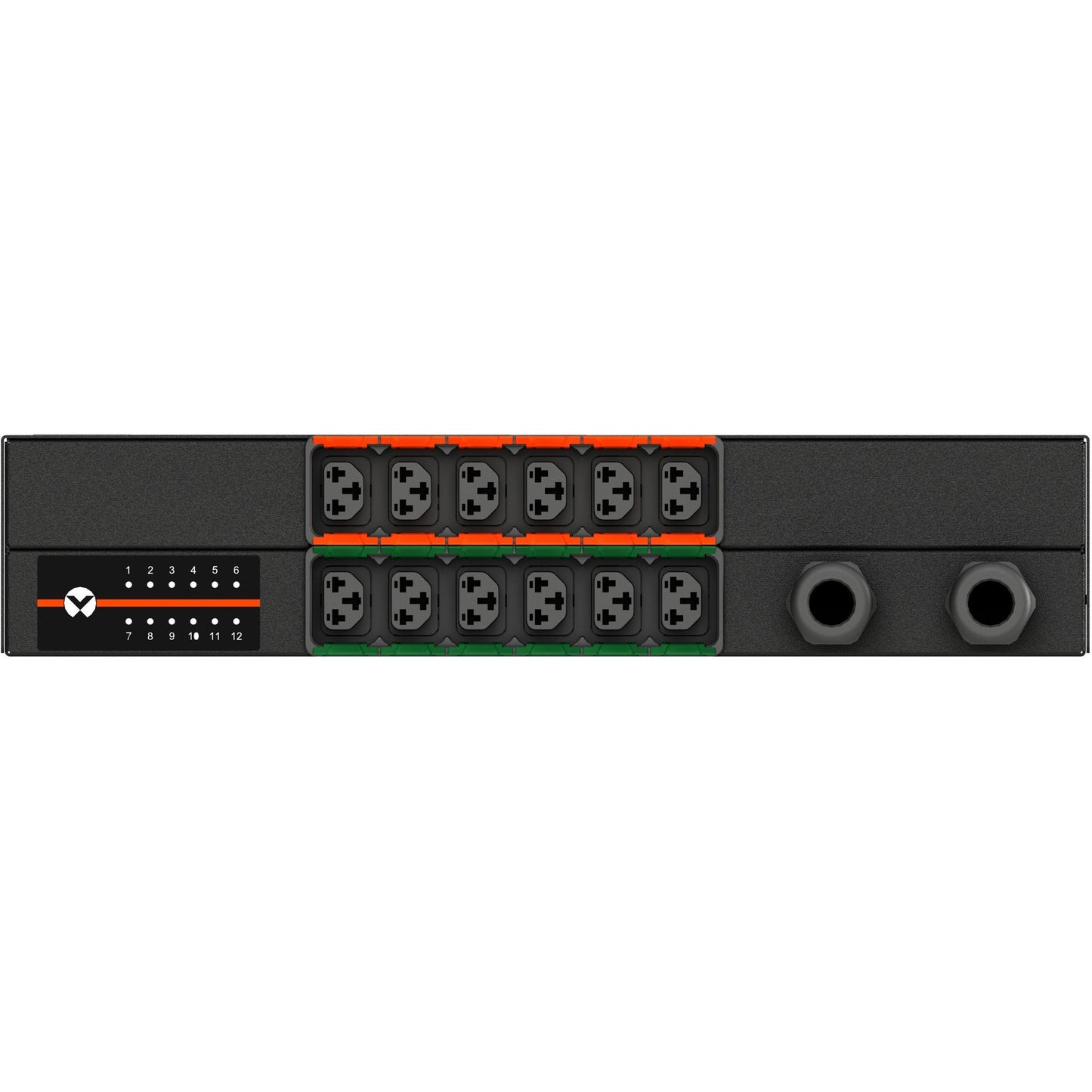

• Vertiv Geist RTS VA7G9201 - Rack Transfer Switch| RPDU| (12) Combination C13/C19
    Vertiv Geist RTS VA7G9201 - Rack Transfer Switch| RPDU| (12) Combination C13/C19
  • Vertiv Geist RTS VA7G9201 - Rack Transfer Switch| RPDU| (12) Combination C13/C19
  • Vertiv Geist RTS VA7G9201 - Rack Transfer Switch| RPDU| (12) Combination C13/C19
  • Vertiv Geist RTS VA7G9201 - Rack Transfer Switch| RPDU| (12) Combination C13/C19
1 4

Vertiv Geist RTS VA7G9201 - Rack Transfer Switch| RPDU| (12) Combination C13/C19

Vertiv Geist RTS VA7G9201 - Rack Transfer Switch| RPDU| (12) Combination C13/C19

SKU: 1070839649      MFR: Vertiv

Product Description

Vertiv Geist RTS VA7G9201 - Rack Transfer Switch| RPDU| (12) Combination C13/C19 - Switched Outlet Level Monitored 2U rPDU| (12) Combination C13/C19 Outlets| 32A| 7.3kW| 230V| 1P+N+E (IP44) Dual Input| P-Lock compatible outlets| Interchangeable Monitoring Device| Three-year warranty extendable to five years| TAA-Compliant| RoHS Compliant| UL & c-UL Listed

Manufacturer : Vertiv

Manufacturer Part No : VA7G9201

Features

  • Vertiv Geist Rack Transfer Switch provides redundant power so IT equipment remains powered in the event of power loss in the primary source
  • 32A| 230V| 7.3kW| Dual Input 1P+N+E (IP44)| 1Phase| 2U RPDU
  • 12 Combination C13/C19 Outlets that accommodate C14 and C20 plugs interchangeably
  • Remote monitoring and management features through web browser or serial communication
  • Three-year warranty is extendable to five years if unit is registered within 120 days of purchase

Product Details

Product TypePDU
PhaseSingle Phase
Receptacle TypeCombination C13/C19
Environmentally FriendlyYes
Output Voltage Range200 V AC - 240 V AC
USBYes
Network (RJ-45)Yes
Modem (RJ-11)No
Serial PortYes
Modem (RJ-12)Yes
Modem (RJ-22)No
Number of Cord/Cable2
TAA CompliantYes
PDU TypeSwitched Auto Transfer Switch
Remote Outlet SwitchingYes
Mounting OrientationHorizontal
Power Rating (Watt)7300 W
Product ColorBlack
Receptacle Detail12 x Combination C13/C19
Plug/Connector Detail2 x 1P+N+E (IP44)
Country of OriginUnited States
Height3.4"
Width17"
Depth18"
Certifications & Standards
  • UL
  • c-UL Listed 62368
Product SeriesG
Rack Height2U
Brand NameGeist
Plug/Connector Type1P+N+E (IP44)
Input Voltage Range200 V AC - 240 V AC
Input Current32 A
Management
  • DHCP
  • HTTP
  • HTTPS
  • IPv4
  • IPv6
  • LDAP
  • NTP
  • RADIUS
  • RSTP
  • SSH
  • SMTP
  • SNMP (v1/v2c/v3)
  • Modbus TCP/IP
  • Syslog
  • TACACS+
ManufacturerVertiv
Product ModelAGU3E2R6-12CF13-3PS6PS6B211-D
Product NameGU VA7G9201 PDU
Protection TypeOvercurrent Protection
Input Voltage230 V
Manufacturer Part NumberVA7G9201
Manufacturer Website Addresshttp://www.vertiv.com/
Marketing Information

The Vertiv Geist Rack Transfer Switch VA7G9201 is a versatile rack power distribution unit (rPDU) with a transfer switch. It is a 32A 230V single phase rack PDU with 12 Combination C12/C19 Outlets and dual input 1P+N+E (IP44) plugs that provide 7.3kW in max power capacity. The RTS provides redundant power to single corded devices and ensures continuity in the event of power loss. It can quickly detect power loss on the main source and automatically switch it to the secondary source within 4 to 8 milliseconds. The Combination C13/C19 Outlets accommodate C14 and C20 plugs interchangeably offering flexibility for ever-changing requirements. The Interchangeable Monitoring Device provides unit level remote power monitoring. The enhanced intelligence also simplifies remote management of up to 100 rPDUs on a single IP address using the built-in Vertiv Intelligence Director. This TAA-Compliant Vertiv RTS comes with a standard three-year warranty which can be extended to five years if registered within 120 days after purchase.

More from the Manufacturer
Limited Warranty5 Year
Weight (Approximate)19 lb
Product FamilyG
View full details
$3,309.99 USD
$3,309.99
Sale Sold out

Dropship

Get it by Wed, Jan 08 - Mon, Jan 13


Update


Shipping calculated at checkout.

Vertiv Geist RTS VA7G9201 - Rack Transfer Switch| RPDU| (12) Combination C13/C19 - Switched Outlet Level Monitored 2U rPDU| (12) Combination C13/C19 Outlets| 32A| 7.3kW| 230V| 1P+N+E (IP44) Dual Input| P-Lock compatible outlets| Interchangeable Monitoring Device| Three-year warranty extendable to five years| TAA-Compliant| RoHS Compliant| UL & c-UL Listed

Manufacturer : Vertiv

Manufacturer Part No : VA7G9201

Features

  • Vertiv Geist Rack Transfer Switch provides redundant power so IT equipment remains powered in the event of power loss in the primary source
  • 32A| 230V| 7.3kW| Dual Input 1P+N+E (IP44)| 1Phase| 2U RPDU
  • 12 Combination C13/C19 Outlets that accommodate C14 and C20 plugs interchangeably
  • Remote monitoring and management features through web browser or serial communication
  • Three-year warranty is extendable to five years if unit is registered within 120 days of purchase

Product Details

Product TypePDU
PhaseSingle Phase
Receptacle TypeCombination C13/C19
Environmentally FriendlyYes
Output Voltage Range200 V AC - 240 V AC
USBYes
Network (RJ-45)Yes
Modem (RJ-11)No
Serial PortYes
Modem (RJ-12)Yes
Modem (RJ-22)No
Number of Cord/Cable2
TAA CompliantYes
PDU TypeSwitched Auto Transfer Switch
Remote Outlet SwitchingYes
Mounting OrientationHorizontal
Power Rating (Watt)7300 W
Product ColorBlack
Receptacle Detail12 x Combination C13/C19
Plug/Connector Detail2 x 1P+N+E (IP44)
Country of OriginUnited States
Height3.4"
Width17"
Depth18"
Certifications & Standards
  • UL
  • c-UL Listed 62368
Product SeriesG
Rack Height2U
Brand NameGeist
Plug/Connector Type1P+N+E (IP44)
Input Voltage Range200 V AC - 240 V AC
Input Current32 A
Management
  • DHCP
  • HTTP
  • HTTPS
  • IPv4
  • IPv6
  • LDAP
  • NTP
  • RADIUS
  • RSTP
  • SSH
  • SMTP
  • SNMP (v1/v2c/v3)
  • Modbus TCP/IP
  • Syslog
  • TACACS+
ManufacturerVertiv
Product ModelAGU3E2R6-12CF13-3PS6PS6B211-D
Product NameGU VA7G9201 PDU
Protection TypeOvercurrent Protection
Input Voltage230 V
Manufacturer Part NumberVA7G9201
Manufacturer Website Addresshttp://www.vertiv.com/
Marketing Information

The Vertiv Geist Rack Transfer Switch VA7G9201 is a versatile rack power distribution unit (rPDU) with a transfer switch. It is a 32A 230V single phase rack PDU with 12 Combination C12/C19 Outlets and dual input 1P+N+E (IP44) plugs that provide 7.3kW in max power capacity. The RTS provides redundant power to single corded devices and ensures continuity in the event of power loss. It can quickly detect power loss on the main source and automatically switch it to the secondary source within 4 to 8 milliseconds. The Combination C13/C19 Outlets accommodate C14 and C20 plugs interchangeably offering flexibility for ever-changing requirements. The Interchangeable Monitoring Device provides unit level remote power monitoring. The enhanced intelligence also simplifies remote management of up to 100 rPDUs on a single IP address using the built-in Vertiv Intelligence Director. This TAA-Compliant Vertiv RTS comes with a standard three-year warranty which can be extended to five years if registered within 120 days after purchase.

More from the Manufacturer
Limited Warranty5 Year
Weight (Approximate)19 lb
Product FamilyG
