FEATURES & BENEFITS

Designed to fit into the 16" on center (406mm) opening between studs in a standard 2"x 4" (51mm x 102mm) wall. For both new work and old work applications. The box has two (2) 4-gang standard NEMA size openings and designed to accommodate power communications and A/V devices. Each box includes tunnel that allows wiring compartments on both sides of the box to be fed with a single conduit reducing time and construction cost. The box has been designed with a cable pass through capability allowing multiple service points to be daisy chained together eliminating the need for multiple conduit runs. Box includes temporary cover. Finished cover assembly (EHWBC) sold separately.

• Available in both 4- and 8-gang versions to provide maximum flexibility.
• Built-in tunnel & feed through capability allows service feeds to be fed through the box reducing the number f feeds required to reduce installation time.

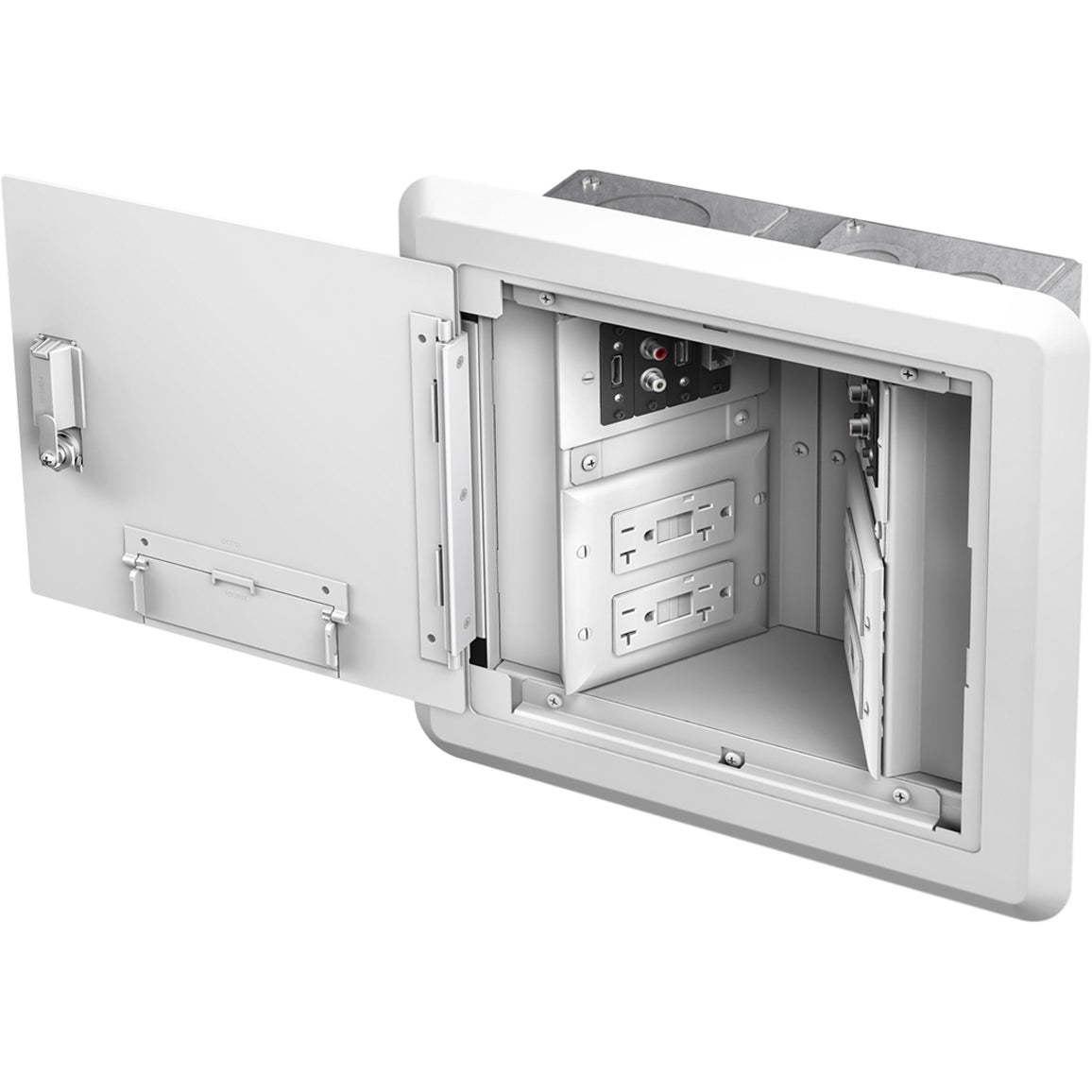

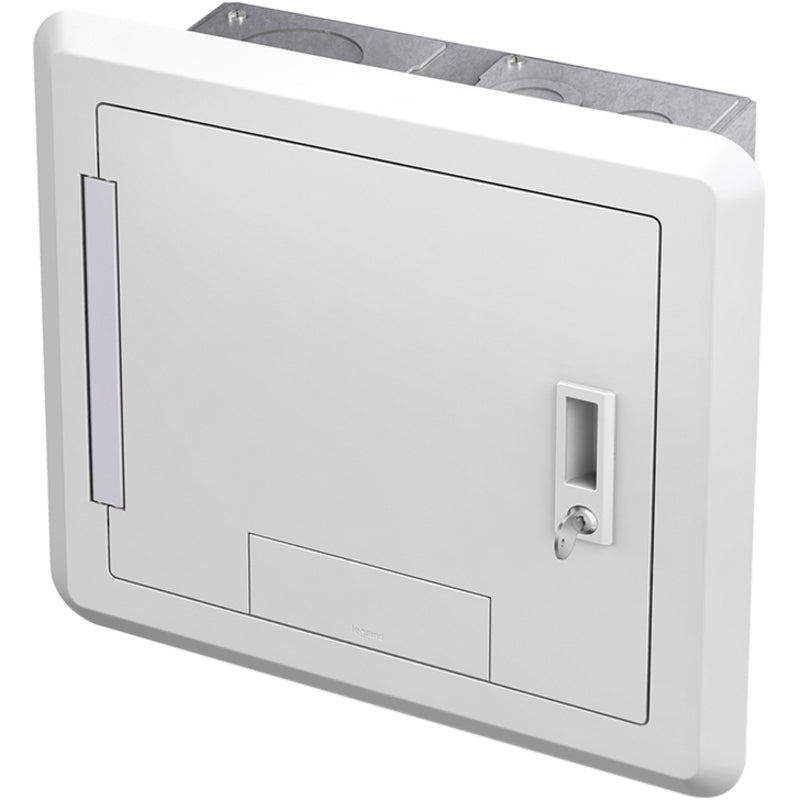

• Cover opens a full 180° and can be painted to blend with room decor. Includes integrated handle lock and key set for security and flush egress door for cabling.

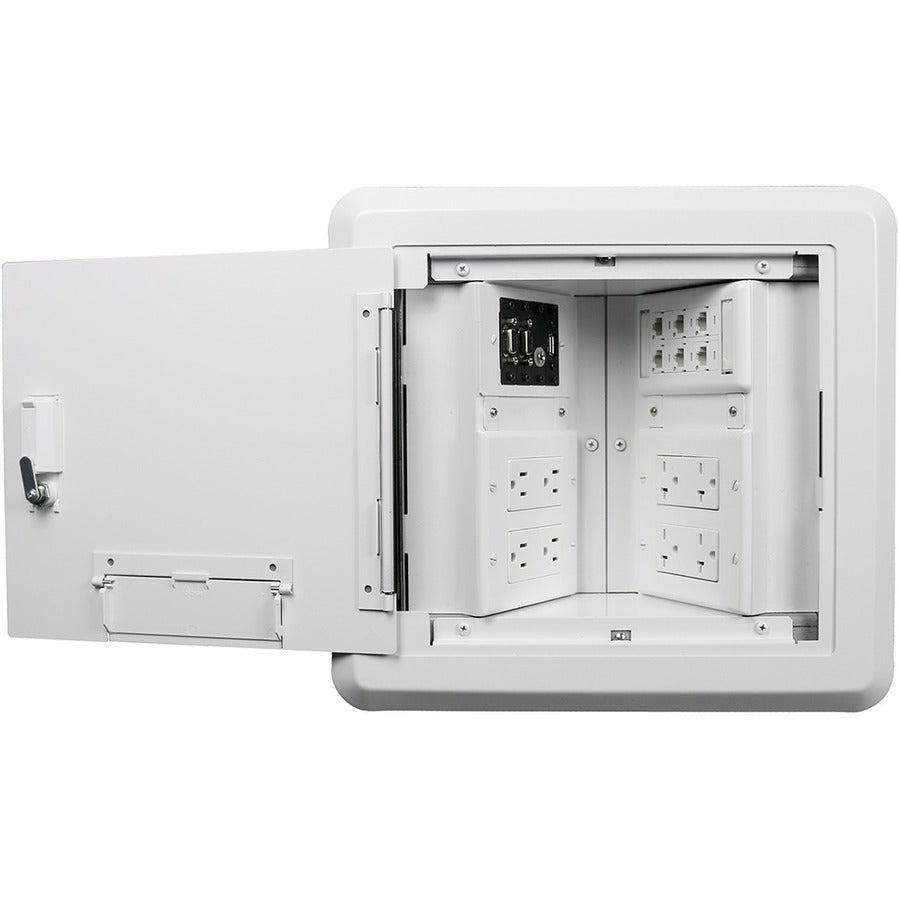

• Designed to accept standard 1- to 4-gang device plates. No proprietary plates simplifies ordering and installation.
• Accepts Legrand AVIP devices plus A/V devices from leading manufacturers.
• 3 5/8" [92mm] of space behind device plates provides the extra depth needed for wiring larger A/V devices.
• Accepts trade size service feeds from 3/4" up to 2". Knockout plates are removable and interchangeable providing multiple options.

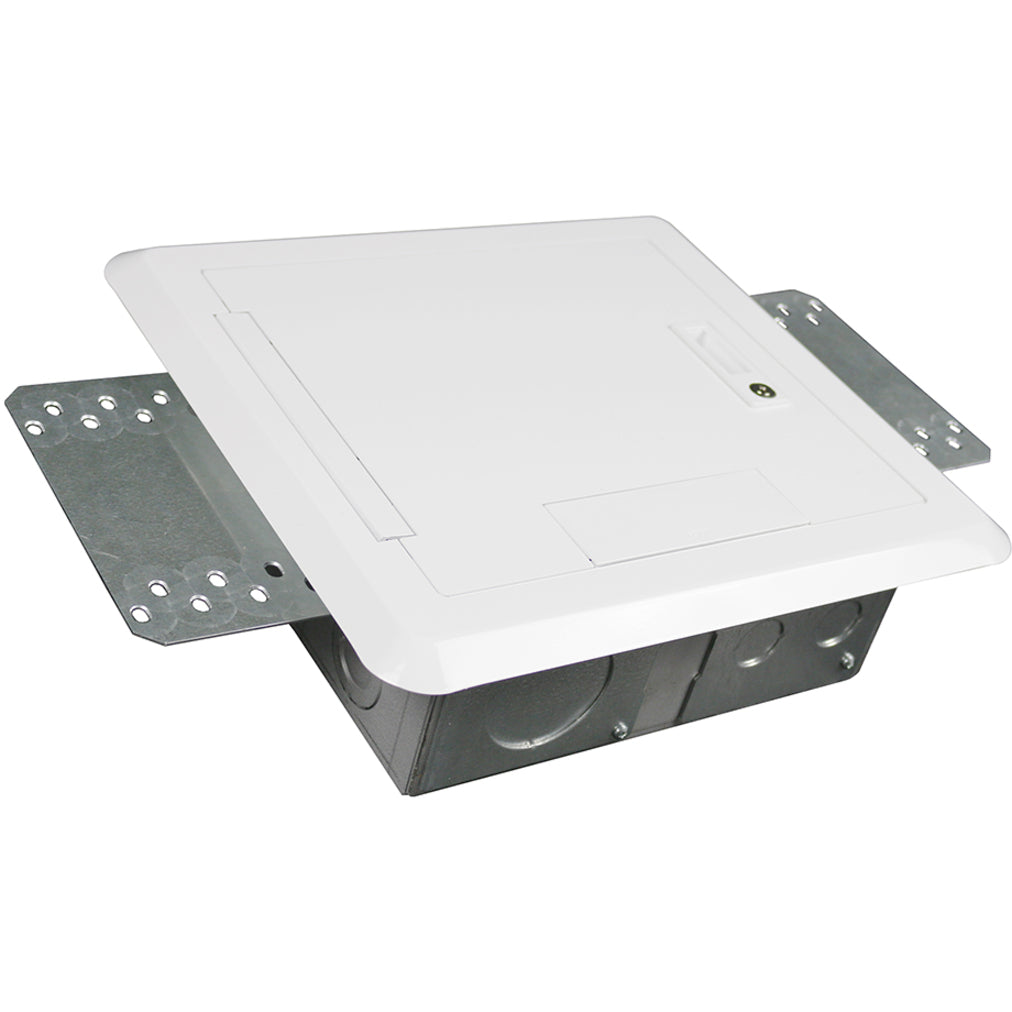

• Can be installed in new work and old work installations. New hardware not necessary.
• Both boxes (4- and 8-gang) fit are designed to fit in 16" opening between studs in standard 2" x 4" [51mm x 102mm] wall.
• UL Listed to U.S. and Canadian safety standards.
• Finished interior eliminates industrial look for upscale installations while increasing visibility making it easier to locate.
• This product meets the material restrictions of RoHS

• Evolution Series 8-Gang Hinged Wall Box

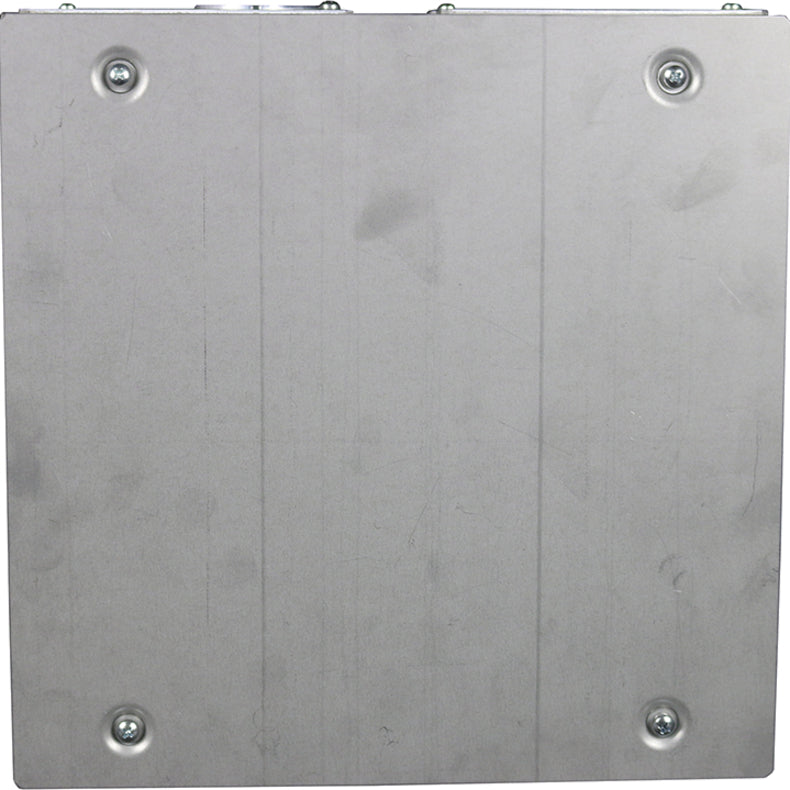

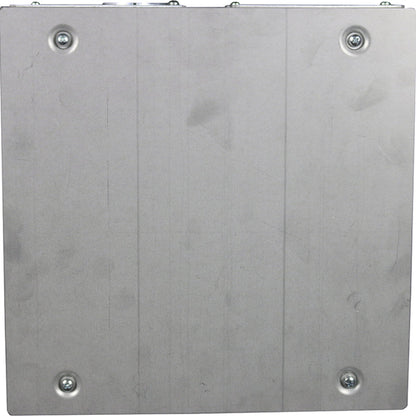

• Temporary Cover
