OmniBox™ Series Floor Boxes provides an excellent activation solution when multiple services are required in open space areas. OmniBox™ Series Floor Boxes offer one- two- and three-gang multi-service boxes that are fully adjustable before and after the concrete pour. Available in both stamped steel and cast iron fabrications they meet a wide range of workstation requirements for today's and tomorrow's service needs. These floor boxes have many applications some of which include schools financial institutions and commercial office buildings.

Features & Benefits

• Fully adjustable box. Fully adjustable both before and after concrete pour. Reduces installation costs.
• Two Fabrications: Stamped Steel - Lower cost concretetight construction option for above grade applications. Cast-Iron - Watertight construction for on or below grade applications.
• Available in two depths. Economical alternatives when pour depths are limited.
• Flush activation assemblies for carpet and tile. Aesthetically pleasing assemblies are interchangeable in both cast-iron and stamped steel box models.
• Available in one- two- and three-gang configurations. Removable dividers increase capacity. More configurations to support multi-service applications.
• Triple service boxes. Accommodates power communication and/or audio/video devices which reduces the need for multiple boxes.
• Brushed aluminum covers for power applications. 830CK Series Aluminum Covers redesigned to accept threaded conduit when passing through power cables.
• Brass and brushed aluminum covers accept single locking power receptacles. New 828DLR Series provides single flip lid cover.
• 828COMTC Series Cover Kit in brass and brushed aluminum. Allows communication devices to be recessed into 880S and 880CS Series Floor Boxes.
• Partition support kit for 3-gang tile flanges. The 838TAL-880 Series Flanges provide partition supports in tile applications for added strength and durability.
• TopGuard protection. All cover assemblies for the OmniBox Floor Box Series have TopGuard protection. An integral design which keeps out water dirt and debris from the power and communication compartments.
• Boxes and covers have been listed by Underwriters Laboratories Inc. to their standard UL514A 514C 514D and Canadian standard C22.2
• Datacom connectivity options. Accepts industry standard and proprietary devices from a wide range of manufacturers to provide a seamless and aesthetically pleasing interface for voice data audio and video applications at the point-ofuse. A wide selection of data and adapter options available for use with Ortronics® TracJack® and Series II devices.

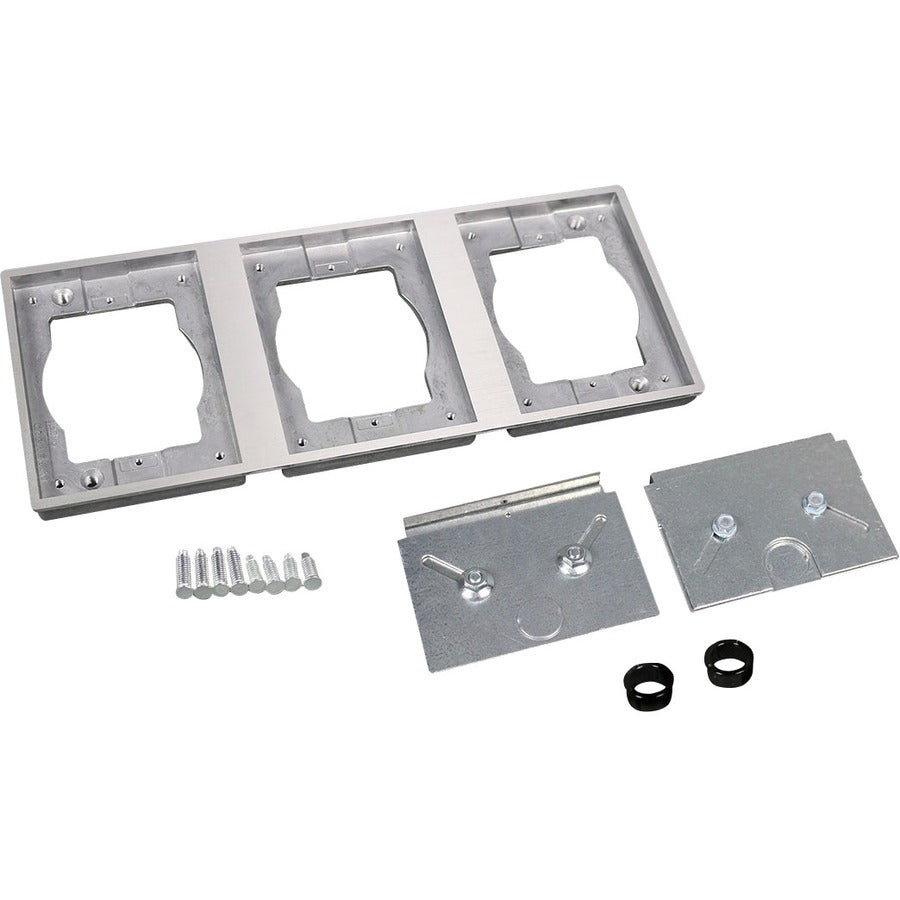

• 838TAL Flange
• 2 x Support Dividers
