• Xeal Build-to-Order - 2000W 1U Redundant Power Supply

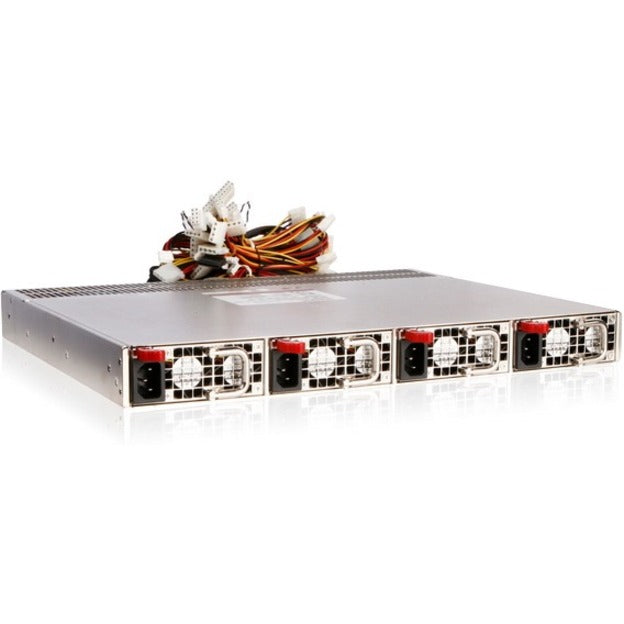

    Xeal Build-to-Order - 2000W 1U Redundant Power Supply
1 1

Xeal Build-to-Order - 2000W 1U Redundant Power Supply

Xeal Build-to-Order - 2000W 1U Redundant Power Supply

SKU: 1021539776      MFR: iStarUSA Inc

GTIN: 846813008686

Product Description

Xeal Build-to-Order - 2000W 1U Redundant Power Supply - Rack-mountable - 120 V AC 230 V AC Input - 3.3 V DC @ 60 A 5 V DC @ 60 A 12 V DC @ 158 A -5 V DC @ 500 mA -12 V DC @ 800 mA 5 V DC @ 3 A Output - 2000 W - Active PFC - 75% Efficiency

Manufacturer : iStarUSA Inc

Manufacturer Part No : IS-2000RH1UP

Product Details

ManufactureriStarUSA Inc
Form FactorRack-mountable
CompatibilityiStarUSA Storage Server Rackmount Chassis:
  • E5M26
  • E8M42
  • E9M50
  • V-4-M24SA
Brand NameXeal
Depth13.4"
Width16.6"
Height1.7"
Environmental CertificationRoHS
Environmentally FriendlyYes
Product TypePower Supply
Specification ComplianceATX12V/EPS12V
Efficiency75%
Input Voltage120 V AC
Input Voltage230 V AC
Output Power2000 W
Output Voltage3.3 V DC @ 60 A
Power Factor Correction (PFC)Active
Input Voltage TypeAC
Certifications & Standards
  • UL 60950-1 2000 Edition
  • IEC60950-1 3rd Edition
  • EU Low Voltage Directive (73/23/EEC) (CB)
  • TÜV
  • FCC Part15 ( Radiated & Conducted Emissions )
  • CISPR 223rd Edition / EN55022: 1998 + A1: 2000)
  • PFC Harmonic: EN61000-3-2:2000
  • Flicker: EN61000-3-3: 1995 + A1: 2002
  • Immunity against: EN55024: 1998 + A1: 2001 and A2: 2003
  • Electrostatic discharge: IEC 61000-4-2
  • Radiated field strength: IEC 61000-4-3
  • Fast transients: IEC 61000-4-4
  • Surge voltage: IEC 61000-4-5
  • RF Conducted: IEC 61000-4-6
  • Voltage Dips and Interruptions: IEC 61000-4-11
Receptacles1 x 24-pin ATX Motherboard
Input Voltage Range100 V AC - 240 V AC
Input Current15 A @ 110V
MTBF100000 Hour
Product ModelIS-2000RH1UP
Product NameBuild-to-Order - 2000W 1U Redundant Power Supply
Protection TypeShort Circuit
Manufacturer Part NumberIS-2000RH1UP
Manufacturer Website Addresshttp://www.istarusa.com
Marketing InformationXEAL quad AC input 1U 2000W Redundant Power Supply IS-2000R4H1UP. It offers your server and workstation zero down time with full 2000W power redundancy. Active PFC temperature control fan hot swappable power modules and load sharing function provide ultimate precision power and safety protection for all electronic equipment. A good start for your mission critical system integrations.
View full details
$2,124.99 USD
$2,124.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

Xeal Build-to-Order - 2000W 1U Redundant Power Supply - Rack-mountable - 120 V AC 230 V AC Input - 3.3 V DC @ 60 A 5 V DC @ 60 A 12 V DC @ 158 A -5 V DC @ 500 mA -12 V DC @ 800 mA 5 V DC @ 3 A Output - 2000 W - Active PFC - 75% Efficiency

Manufacturer : iStarUSA Inc

Manufacturer Part No : IS-2000RH1UP

Product Details

ManufactureriStarUSA Inc
Form FactorRack-mountable
CompatibilityiStarUSA Storage Server Rackmount Chassis:
  • E5M26
  • E8M42
  • E9M50
  • V-4-M24SA
Brand NameXeal
Depth13.4"
Width16.6"
Height1.7"
Environmental CertificationRoHS
Environmentally FriendlyYes
Product TypePower Supply
Specification ComplianceATX12V/EPS12V
Efficiency75%
Input Voltage120 V AC
Input Voltage230 V AC
Output Power2000 W
Output Voltage3.3 V DC @ 60 A
Power Factor Correction (PFC)Active
Input Voltage TypeAC
Certifications & Standards
  • UL 60950-1 2000 Edition
  • IEC60950-1 3rd Edition
  • EU Low Voltage Directive (73/23/EEC) (CB)
  • TÜV
  • FCC Part15 ( Radiated & Conducted Emissions )
  • CISPR 223rd Edition / EN55022: 1998 + A1: 2000)
  • PFC Harmonic: EN61000-3-2:2000
  • Flicker: EN61000-3-3: 1995 + A1: 2002
  • Immunity against: EN55024: 1998 + A1: 2001 and A2: 2003
  • Electrostatic discharge: IEC 61000-4-2
  • Radiated field strength: IEC 61000-4-3
  • Fast transients: IEC 61000-4-4
  • Surge voltage: IEC 61000-4-5
  • RF Conducted: IEC 61000-4-6
  • Voltage Dips and Interruptions: IEC 61000-4-11
Receptacles1 x 24-pin ATX Motherboard
Input Voltage Range100 V AC - 240 V AC
Input Current15 A @ 110V
MTBF100000 Hour
Product ModelIS-2000RH1UP
Product NameBuild-to-Order - 2000W 1U Redundant Power Supply
Protection TypeShort Circuit
Manufacturer Part NumberIS-2000RH1UP
Manufacturer Website Addresshttp://www.istarusa.com
Marketing InformationXEAL quad AC input 1U 2000W Redundant Power Supply IS-2000R4H1UP. It offers your server and workstation zero down time with full 2000W power redundancy. Active PFC temperature control fan hot swappable power modules and load sharing function provide ultimate precision power and safety protection for all electronic equipment. A good start for your mission critical system integrations.
